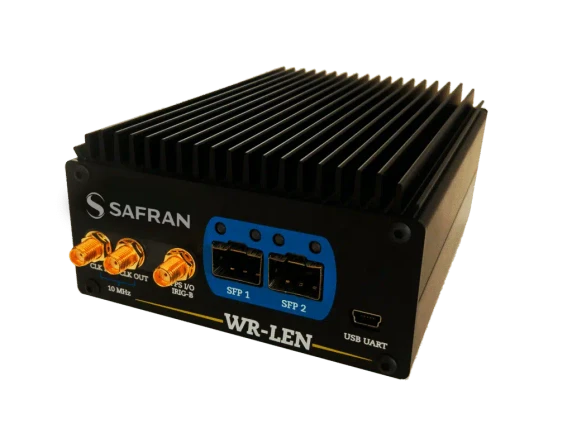

White Rabbit LEN

WR LEN is the competitive White Rabbit alternative capable of supporting daisy chain configurations. It allows a cost effective solution to distribute PPS/10MHz signals or IRIG-B protocol to your equipment. Optional: 2xμ-DB9 connector for PPSs & 10MHz fan-out or configurable output triggers.

Sub Nano Second Time Accuracy

With less than a billionth of a second of accuracy compared to a master reference clock, the White Rabbit Time Distribution products provide you with ultra precise synchronization.

Timing Over Fiber Optic Cabling

With the ability to connect devices using fiber optic cables, White Rabbit timing distribution products enable you to transfer time information at a sub-nano second level – both in Local Area Networks (LAN), Wide Area Networks (WAN) and across large distances.

FEATURES

• Sub-nanosecond time accuracy
• Compact size
• Distance range: over 80 km using fiber
• Robustness & Redundancy
• Dynamic calibration
• Remote monitoring & upgrade
• Programmable trigger

SPECS

• Size: 54 x 105 x 135 mm
• Power: 5V DC, 1.5 A – 7.5W max
• Environmental Conditions
  • Temperature: -10ºC ~ +50ºC
  • Humidity: 0% ~ 90% RH
• Timing Protocols / Interfaces
  • WhiteRabbit – Dual optical fiber Ethernet 1G interfaces
  • IRIG-B / PPS I/O – Digital LVTTL (3.3V) Selectable operation
• Frequency I/O
  • 10 MHz programmable input/output
