Teltonika Networks
Teltonika Networks 15723765 SWM282 L2+ switch, 19 Rack, 24xGbE PoE, 4xSFP
$409.00
Zoom the image with the mouse
Teltonika Networks

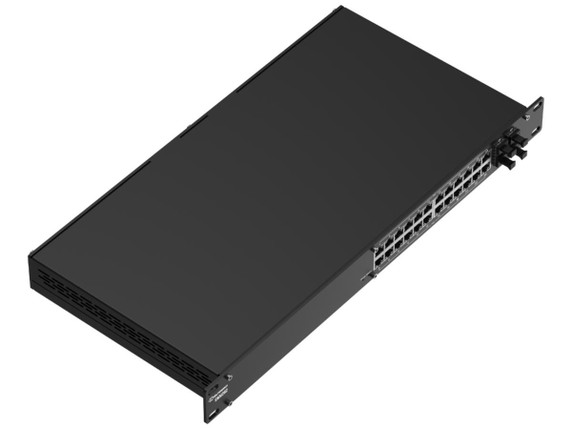

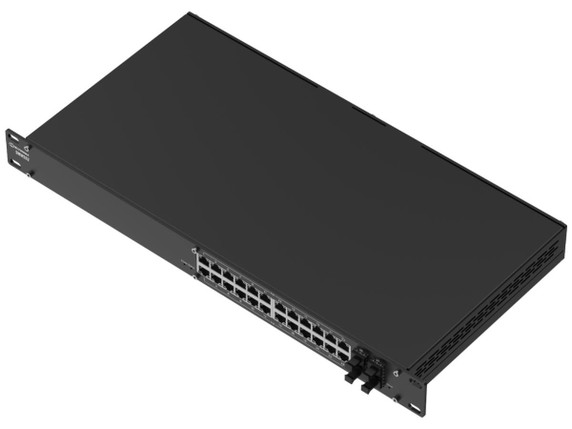

Teltonika Networks 15196621 SWM282 L2+ Managed Switch, 19 Rack, PoE, 24xGbE, 4xSFP
Product Code:
15196621
Manufacturer Part Number (MPN):
SWM282000200
UPC:
4779051844050
Condition:
New
Weight:
2.29 KGS
Width:
48.30
(cm)
Height:
4.40
(cm)
Depth:
23.40
(cm)
$399.00
The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | SWM282 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 28 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| RAM / Total Installed Size: | 128 MB |
| Flash Memory / Installed Size: | 16 MB |
| Networking Compliant Standards: | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Power / Device Type: | Power Supply |
| Power Consumption Operational: | 9 Watt |
| Max Power Consumption: | 330 Watt |
| Power / Voltage Required: | 100-240 VAC |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| PoE Power Consumption: | 300 W |
| MAC Address Table Size: | 8K entries |
| Jumbo Frame Support: | 10000 bytes |
| Remote Management Protocol: | DHCP; IPv4; IPv6 |
| Routing Protocol: | BGP, OSPF v2, RIP v1/v2, EIGRP |
| Authentication Method: | Radius & TACACS+ |
| SFP Ports: | 4 |
| Interfaces: | 24 x RJ45 ports, 10/100/1000 Mbps, 4 x SFP ports |
| Interfaces / Ports | |
| Interfaces: | 24 x RJ45 ports, 10/100/1000 Mbps, 4 x SFP ports |
| SFP Ports: | 4 |
| Dimensions&Miscellaneous | |
| Width: | 483 Mm |
| Depth: | 234 Mm |
| Height: | 44 Mm |
| Weight: | 2.29 Kg |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 50 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | SWM282 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 28 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| RAM / Total Installed Size: | 128 MB |
| Flash Memory / Installed Size: | 16 MB |
| Networking Compliant Standards: | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Power / Device Type: | Power Supply |
| Power Consumption Operational: | 9 Watt |
| Max Power Consumption: | 330 Watt |
| Power / Voltage Required: | 100-240 VAC |
| Network | |
| Power Over Ethernet (PoE) Support: | Yes |
| PoE Power Consumption: | 300 W |
| MAC Address Table Size: | 8K entries |
| Jumbo Frame Support: | 10000 bytes |
| Remote Management Protocol: | DHCP; IPv4; IPv6 |
| Routing Protocol: | BGP, OSPF v2, RIP v1/v2, EIGRP |
| Authentication Method: | Radius & TACACS+ |
| SFP Ports: | 4 |
| Interfaces: | 24 x RJ45 ports, 10/100/1000 Mbps, 4 x SFP ports |
| Interfaces / Ports | |
| Interfaces: | 24 x RJ45 ports, 10/100/1000 Mbps, 4 x SFP ports |
| SFP Ports: | 4 |
| Dimensions&Miscellaneous | |
| Width: | 483 Mm |
| Depth: | 234 Mm |
| Height: | 44 Mm |
| Weight: | 2.29 Kg |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 50 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks SWM282 Datasheet | |
