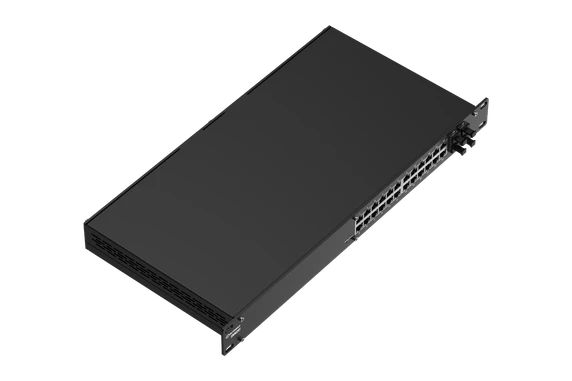

Teltonika Networks 15196620 SWM281 L2+ Managed Switch, 19 Rack, 24xGbE, 4xSFP
Product Code:
15196620
Manufacturer Part Number (MPN):
SWM281000200
UPC:
4779051844104
Condition:
New
Weight:
1.85 KGS
Width:
48.30
(cm)
Height:
4.40
(cm)
Depth:
23.40
(cm)
$239.00
The SWM281 is an L2 managed switch with added L3 functionality, tailored for complex networking scenarios. With 24 Gigabit Ethernet ports and 4 dedicated SFP ports, it delivers high-bandwidth performance and reliable fibre optic communication for large-scale deployments. With support of PROFINET & other industrial protocols, this enterprise-grade 24-port switch ensures smooth integration into automated environments.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | SWM281 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 28 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| RAM / Total Installed Size: | 128 MB |
| Flash Memory / Installed Size: | 16 MB |
| Networking Compliant Standards: | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Power / Device Type: | Power Supply |
| Power Consumption Operational: | 5.5 Watt |
| Max Power Consumption: | 20 Watt |
| Power / Voltage Required: | 100-240 VAC |
| Network | |
| Power Over Ethernet (PoE) Support: | None |
| PoE Power Consumption: | None |
| MAC Address Table Size: | 8K entries |
| Jumbo Frame Support: | 10000 bytes |
| Remote Management Protocol: | DHCP; IPv4; IPv6 |
| Routing Protocol: | BGP, OSPF v2, RIP v1/v2, EIGRP |
| Authentication Method: | Radius & TACACS+ |
| SFP Ports: | 4 |
| Interfaces: | 24 x RJ45 ports, 10/100/1000 Mbps, 4 x SFP ports |
| Interfaces / Ports | |
| Interfaces: | 24 x RJ45 ports, 10/100/1000 Mbps, 4 x SFP ports |
| SFP Ports: | 4 |
| Dimensions&Miscellaneous | |
| Width: | 483 Mm |
| Depth: | 234 Mm |
| Height: | 44 Mm |
| Weight: | 1.85 Kg |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 50 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
5 customers are viewing this product
Details
The SWM281 is an L2 managed switch with added L3 functionality, tailored for complex networking scenarios. With 24 Gigabit Ethernet ports and 4 dedicated SFP ports, it delivers high-bandwidth performance and reliable fibre optic communication for large-scale deployments. With support of PROFINET & other industrial protocols, this enterprise-grade 24-port switch ensures smooth integration into automated environments.
| Specifications | |
| Primary Information | |
| Network Device Type: | Switch |
| Model: | SWM281 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 28 |
| Data Link Protocol: | Gigabit Ethernet |
| Status Indicators: | LEDs |
| RAM / Total Installed Size: | 128 MB |
| Flash Memory / Installed Size: | 16 MB |
| Networking Compliant Standards: | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Power / Device Type: | Power Supply |
| Power Consumption Operational: | 5.5 Watt |
| Max Power Consumption: | 20 Watt |
| Power / Voltage Required: | 100-240 VAC |
| Network | |
| Power Over Ethernet (PoE) Support: | None |
| PoE Power Consumption: | None |
| MAC Address Table Size: | 8K entries |
| Jumbo Frame Support: | 10000 bytes |
| Remote Management Protocol: | DHCP; IPv4; IPv6 |
| Routing Protocol: | BGP, OSPF v2, RIP v1/v2, EIGRP |
| Authentication Method: | Radius & TACACS+ |
| SFP Ports: | 4 |
| Interfaces: | 24 x RJ45 ports, 10/100/1000 Mbps, 4 x SFP ports |
| Interfaces / Ports | |
| Interfaces: | 24 x RJ45 ports, 10/100/1000 Mbps, 4 x SFP ports |
| SFP Ports: | 4 |
| Dimensions&Miscellaneous | |
| Width: | 483 Mm |
| Depth: | 234 Mm |
| Height: | 44 Mm |
| Weight: | 1.85 Kg |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 50 Celsius |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
Download
| Download Name | |
| Teltonika Networks SWM281 Datasheet | |
