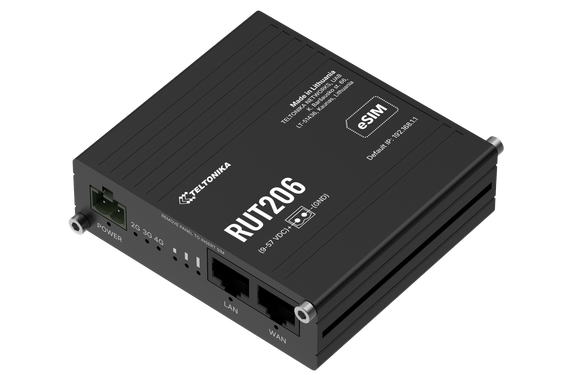

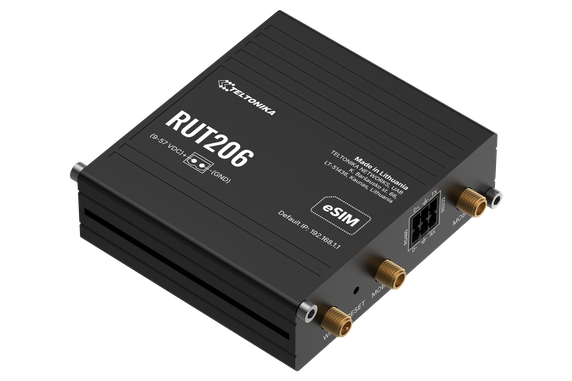

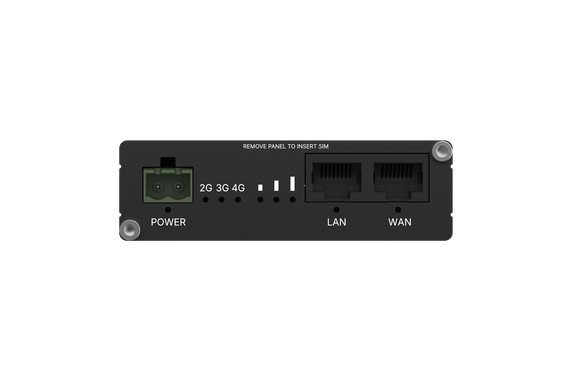

Teltonika Networks 15131783 RUT206 LTE Cat 4 Router
Product Code:
15131783
Manufacturer Part Number (MPN):
RUT206020000
UPC:
4779051842056
Condition:
New
Weight:
0.13 KGS
Width:
8.30
(cm)
Height:
2.50
(cm)
Depth:
8.30
(cm)
$289.00
The RUT206 is a compact industrial router that supports RS232 and RS485 serial interfaces, along with both active and passive PoE inputs. Its rugged design, 2-pin power input, and expandable data storage via a microSD slot make it an ideal choice for a range of IoT and M2M applications. This 4G Cat 4 router comes with RutOS open-source software and supports key industrial protocols like Modbus, DNP3 and DLMS.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUT206 |
| Networking / Ports Qty: | 2 |
| Processor / Type: | MediaTek |
| Processor / Clock Speed: | 580 MHz |
| RAM / Total Installed Size: | 128 MB |
| Flash Memory / Installed Size: | 32 MB |
| Power / Device Type: | Power Supply |
| Power / Voltage Required: | 9 - 57 VDC, reverse polarity protection, surge protection >58V @10us min |
| Interfaces: | 2 x RJ45 ports, 10/100 Mbps; 2 x SIM slots (Mini SIM 2FF), 1.8 V/3 V, double stacked SIM tray; 1 x 2-pin power connector; |
| Antenna Type: | Antenna |
| Networking | |
| Connectivity Technology: | Wired; Wireless |
| Data Link Protocol: | Wi-Fi; Ethernet |
| Encryption Algorithm: | WPA2-Enterprise |
| Status Indicators: | 3 x Connection type status LEDs, 3 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
| Cellular Technology: | LTE |
| Cellular Service Provider: | AT&T; Verizon; T-Mobile |
| Cellular Generation: | 4G |
| Dimensions&Miscellaneous | |
| Width: | 83 Mm |
| Depth: | 83 Mm |
| Height: | 25 Mm |
| Weight: | 132 g |
| Special Feature | |
| Min Operating Temperature: | -40C |
| Max Operating Temperature: | 75C |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
5 customers are viewing this product
Details
The RUT206 is a compact industrial router that supports RS232 and RS485 serial interfaces, along with both active and passive PoE inputs. Its rugged design, 2-pin power input, and expandable data storage via a microSD slot make it an ideal choice for a range of IoT and M2M applications. This 4G Cat 4 router comes with RutOS open-source software and supports key industrial protocols like Modbus, DNP3 and DLMS.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUT206 |
| Networking / Ports Qty: | 2 |
| Processor / Type: | MediaTek |
| Processor / Clock Speed: | 580 MHz |
| RAM / Total Installed Size: | 128 MB |
| Flash Memory / Installed Size: | 32 MB |
| Power / Device Type: | Power Supply |
| Power / Voltage Required: | 9 - 57 VDC, reverse polarity protection, surge protection >58V @10us min |
| Interfaces: | 2 x RJ45 ports, 10/100 Mbps; 2 x SIM slots (Mini SIM 2FF), 1.8 V/3 V, double stacked SIM tray; 1 x 2-pin power connector; |
| Antenna Type: | Antenna |
| Networking | |
| Connectivity Technology: | Wired; Wireless |
| Data Link Protocol: | Wi-Fi; Ethernet |
| Encryption Algorithm: | WPA2-Enterprise |
| Status Indicators: | 3 x Connection type status LEDs, 3 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
| Cellular Technology: | LTE |
| Cellular Service Provider: | AT&T; Verizon; T-Mobile |
| Cellular Generation: | 4G |
| Dimensions&Miscellaneous | |
| Width: | 83 Mm |
| Depth: | 83 Mm |
| Height: | 25 Mm |
| Weight: | 132 g |
| Special Feature | |
| Min Operating Temperature: | -40C |
| Max Operating Temperature: | 75C |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
Download
| Download Name | |
| Teltonika Networks RUT206 Datasheet | |
