SpaceBridge

SpaceBridge U7720 – High-Performance Networking Satellite Modem/Router

(No reviews yet) Write a Review
Condition:
New
Availability:
YES
Weight:
3.40 KGS
Width:
12.70 (cm)
Height:
22.90 (cm)
Depth:
17.80 (cm)
  • SpaceBridge U7720 – High-Performance Networking Satellite Modem/Router
  • SpaceBridge U7720 – High-Performance Networking Satellite Modem/Router
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

Description

SpaceBridge entry level rackmount satellite modem/router for high performance L2/L3 multipurpose multiservice networking applications.

U7720 is a high performance networking satellite modem/router capable of supporting IP speeds of 100Mbps download and up to 15Mbps upload. U7720 supports industry standard OpenAMIP, which when coupled with ASATTM maritime multi-beam support and beam switching technology, provides a very effective, robust and secure maritime/mobility communication solution. A board level solution, supporting single user GigE and MGMT GigE, for integration into ODU terminal is also available.

The U7720 is available in the following formats :
• U7720-60: rackmount low power (<40W RF/BUC power)
• U7720-120: rackmount mid power (<100W RF/BUC power) + Quad GigE
• U7720-ODU: IP67 enclosed low power

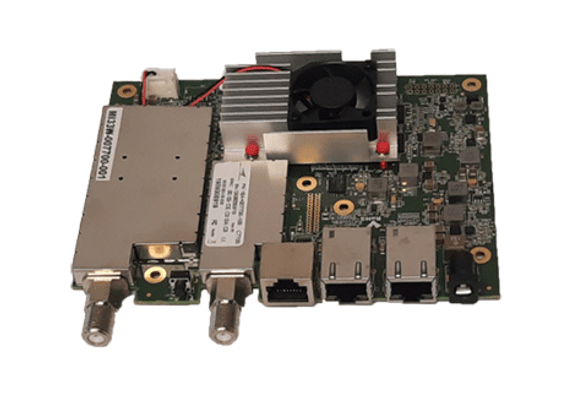

• U7720-SA: stand-alone board level

Benefits

  • Internet-traffic optimization (Performance Enhancement Proxy) and QoS, enhancing user experience and conserving satellite bandwidth
  • Operates with most COTS BUC/LNBs or transceivers

Features

  • DVB-S2X forward link. Highest spectral efficiency via highly granular MODCODs, low roll off rates and Adaptive Coding and Modulation (ACM)
  • DVB-RCS2 return channels supporting QPSK 16QAM and up to 5% rolloffs
  • OpenAMIP and/or dedicated serial port to connect to ODU.
  • Optional : IPSec mode 256AES encryption

Use Cases

• Small and Medium Businesses (SMB)
• Maritime/Mobility Applications
• Cellular Backhaul for thin rural routes
• Available as standalone board for terminal integration

View AllClose

Additional Information

orbital_datasheet_1:
https://7645d645-efa2-486e-a916-cc3dc276ec52.usrfiles.com/ugd/7645d6_eb6be7c91ae9455a8cac5f97f8e02d4f.pdf?U7720 – High-Performance Networking Satellite Modem/Router Data Sheet
