Scanstrut

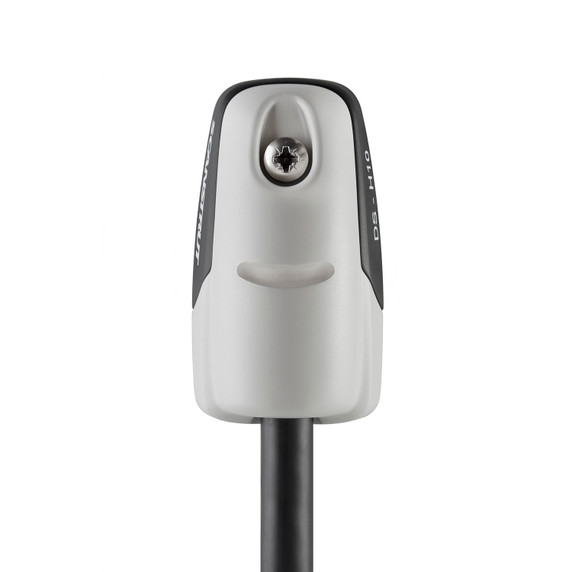

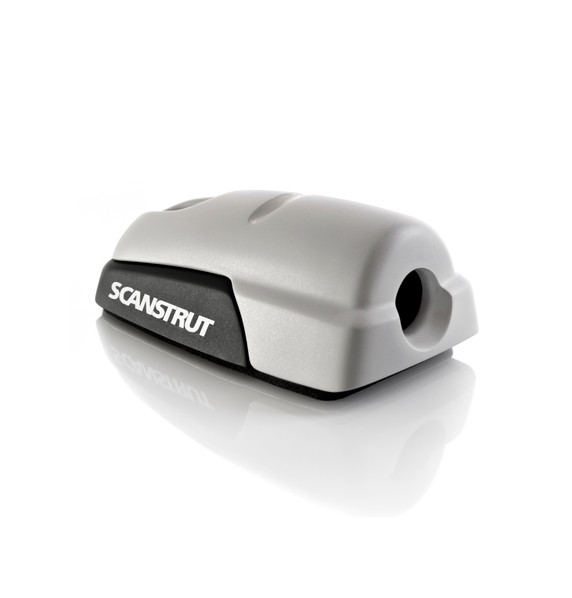

Scanstrut DS-H10 Vertical Cable Seal
Product Code:
DS-H10 || DDS-H10-BLK
Condition:
New
Weight:
0.15 KGS
Width:
8.99
(cm)
Height:
21.01
(cm)
Depth:
3.00
(cm)
$40.99

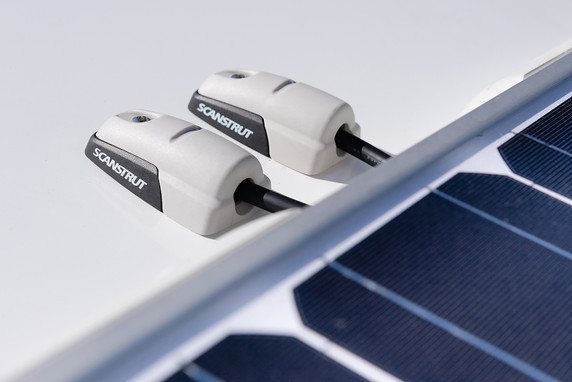

Our most popular horizontal entry cable seal is suitable for cables ranging from 6 to 10 mm (0.24” to 0.39”). It is perfect for applications like solar panels, light bars, lights, and other rooftop electronics.
Design
Designed for a range of cable diameters the DS-H10 is ideal for almost every installation, with different bung sizes and self drill options. The low-profile construction is impact-resistant and provides extra protection from water.
Marine Grade Materials
Our materials have been selected due to their UV-stable and hard-wearing properties. Rated to IP68 to ensure a guaranteed 100% watertight seal and long-lasting performance.
Easy Installation
Designed with repeated and reliable installation in mind, the captive nuts ensure a quick and easy process. To further cut down on installation time, this premium IP68 waterproof range provides easy-fit cable routing, to speed up each cable seal fitting.
Key Features
- IP68 rated seal, for a guaranteed 100% watertight seal
- Available in grey or black high-impact plastic
- No messy sealant on bungs
- Premium UV-stable and hard-wearing materials
- Captive nuts ensure an easy and reliable repeat installation

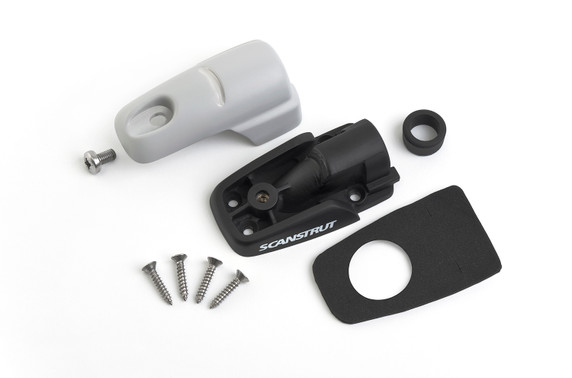

- Supplied with both pre-drilled and blank inner bungs
- Fully customizable with the self-drill bung options
- Ideal for solar panels, light bars, lighting fixtures, and other rooftop electronic equipment
| TECHNICAL SPECIFICATIONS | |
| Material | High Impact Plastic |
| Height | 27mm (1.06”) |
| Length | 77.50mm (3.05”) |
| Colour | Grey & Black |
| Cable Diameter | 6-10mm (0.24-0.39”) |
| Bungs | 1 x 6mm (0.23") / 1 x 7mm (0.27") / 1 x 8mm (0.31") / 1 x 9mm (0.35") / 1 x 10mm (0.39") / 1 x Self Drill |
5 customers are viewing this product
Details
Our most popular horizontal entry cable seal is suitable for cables ranging from 6 to 10 mm (0.24” to 0.39”). It is perfect for applications like solar panels, light bars, lights, and other rooftop electronics.
Design
Designed for a range of cable diameters the DS-H10 is ideal for almost every installation, with different bung sizes and self drill options. The low-profile construction is impact-resistant and provides extra protection from water.
Marine Grade Materials
Our materials have been selected due to their UV-stable and hard-wearing properties. Rated to IP68 to ensure a guaranteed 100% watertight seal and long-lasting performance.
Easy Installation
Designed with repeated and reliable installation in mind, the captive nuts ensure a quick and easy process. To further cut down on installation time, this premium IP68 waterproof range provides easy-fit cable routing, to speed up each cable seal fitting.
Key Features
- IP68 rated seal, for a guaranteed 100% watertight seal
- Available in grey or black high-impact plastic
- No messy sealant on bungs
- Premium UV-stable and hard-wearing materials
- Captive nuts ensure an easy and reliable repeat installation
- Supplied with both pre-drilled and blank inner bungs
- Fully customizable with the self-drill bung options
- Ideal for solar panels, light bars, lighting fixtures, and other rooftop electronic equipment
| TECHNICAL SPECIFICATIONS | |
| Material | High Impact Plastic |
| Height | 27mm (1.06”) |
| Length | 77.50mm (3.05”) |
| Colour | Grey & Black |
| Cable Diameter | 6-10mm (0.24-0.39”) |
| Bungs | 1 x 6mm (0.23") / 1 x 7mm (0.27") / 1 x 8mm (0.31") / 1 x 9mm (0.35") / 1 x 10mm (0.39") / 1 x Self Drill |
