RF-Design ITC5075 Low loss impedance-converter, L-Band
Product Code:
ITC5075
Condition:
New
Availability:
YES
Weight:
0.30 KGS
Width:
5.00
(cm)
Height:
1.20
(cm)
Depth:
1.20
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

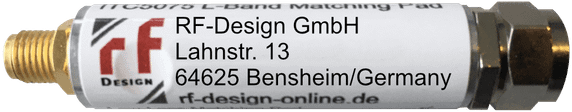

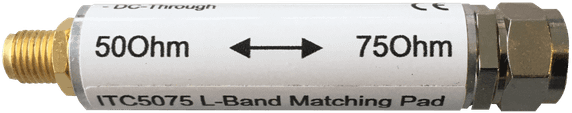

The L-Band Impedance matching pad ITC5075 is ideal for flexible and fast matching between 50Ohm and 75 Ohm systems in L-Band (950 – 2150MHz).
It can be easily connected to relevant units like IRD ́s, Receivers, Modems, optical fiber TX/RX...while it features perfect quality and excellent RF performance with low loss characteristics of <0,3dB
This device is perfectly suited for Satellite communication and CATV architectures as well as for measurement applications.
| TECHNICAL SPECIFICATIONS | |
| Dimensions | 50mm x 12mm |
| Frequency Range | 950 – 2150MHz (L-Band) |
| Impedance Matching | 50Ohm ⇔ 75Ohm |
| Connector 50Ohm | SMA(f) |
| Connector 75Ohm | F(m) or F(f)* |
| DC Through | 500mA |
| Insertion Loss | <0,3dB typ. |
| Frequency Response | < ±0,1dB max. |
| Return Loss | 15dB min, 16ddB typ. |
