Radeus Labs

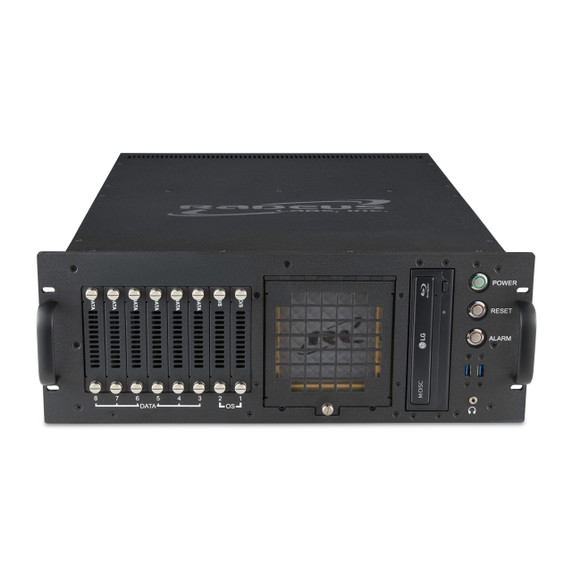

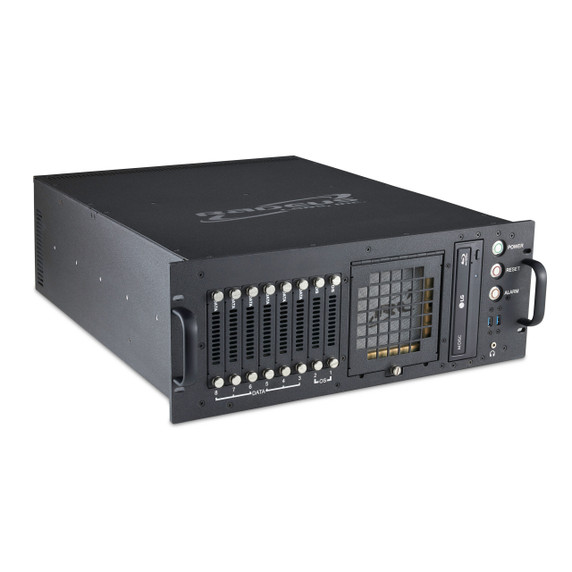

Radeus Labs RLRM4U-MFW Multi-Purpose Computer System
Product Code:
RLRM4U-MFW
Condition:
New
Weight:
30.00 KGS
Width:
48.26
(cm)
Height:
17.78
(cm)
Depth:
55.88
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
When you need a reliable, multi-purpose system, look no further than the RLRM4U22-MFW — by far the most versatile system we offer:
- Capable of running Windows or Linux.
- Full-size EATX motherboard supporting dual Intel E5645 (Westmere) XEON processors with the Intel 5520 chipset.
- 24GB DDR3 RAM and two cold-swappable 1TB 3.5in SATA hard drives are standard.
- Additional three 5.25″ media bays for your application’s optical drives, front I/O, etc., with a custom tray by Radeus.
- The board support five expansion slots, two of which are PCI-Express x16, for high-end graphics and video processing cards.
- 2+1 Redundant 950W AC-DC EPS power supply, standard, with options for an ATX form-factor PSU (non-redundant function) and/or DC (18-36V) input.
| Key Features |
| 5th/4th Intel Xeon Scalable ATX CPUs |
| Up to 2TB RAM (DDR5-5200 ECC RDIMM) |
| Qty 8: Hot-swappable SATA3 SSDs |
| Qty 2: Front Panel USB 3.0 Port |
| Blu-ray SATA burner |
| 950W N+1 Redundant Power Supply |
| 4U Custom Rack Mount Chassis |
| NVIDIA RTX GPU |
| 5 add-in card slots |
| Environmental Testing |
| Supports MIL-STD-810G environments |
| Secured Cargo by US Highway Truck Transport |
| C17 Air Transport (Non-Operating, Procedures I Only) |
| Operating Temperature 5°C to +50°C |
| Storage Temperature -40°C to +70°C |
| Operating Systems Options |
| Microsoft Windows 10 Pro |
| Microsoft Windows 11 Pro |
| Microsoft Windows SHB |
| RedHat |
| Linux |
| VMWare ESXi |
| Specifications |
| Case Dimensions: |
| Height: 4U custom per EIA/ECA-310 |
| Depth: 22″ |
| 0.25” Thick Front Panel: 19.0” ISO Rack |
| Case Material: 0.08” Aluminum |
| Front Finish: Wrinkle Black Powder Coat |
| Text: White |
| Chemical Treatment: MIL-DTL-5541 Class 3 |
| Active air-cooling package |
| Other Features |
| Vandal-Resistant, Momentary, Illuminated Power (Green), Reset (Red), and Alarm (Amber) Switches |
| Front panel accessible drive bays (Qty 8) with removable media for rapid downgrade procedure execution |
| Harsh environment 3-part filter |
| Accessories |
| 20” Solid Bearing Sliding Rack Rails |
| 10’ Power Cords (Qty. 3) |
5 customers are viewing this product
Details
When you need a reliable, multi-purpose system, look no further than the RLRM4U22-MFW — by far the most versatile system we offer:
- Capable of running Windows or Linux.
- Full-size EATX motherboard supporting dual Intel E5645 (Westmere) XEON processors with the Intel 5520 chipset.
- 24GB DDR3 RAM and two cold-swappable 1TB 3.5in SATA hard drives are standard.
- Additional three 5.25″ media bays for your application’s optical drives, front I/O, etc., with a custom tray by Radeus.
- The board support five expansion slots, two of which are PCI-Express x16, for high-end graphics and video processing cards.
- 2+1 Redundant 950W AC-DC EPS power supply, standard, with options for an ATX form-factor PSU (non-redundant function) and/or DC (18-36V) input.
| Key Features |
| 5th/4th Intel Xeon Scalable ATX CPUs |
| Up to 2TB RAM (DDR5-5200 ECC RDIMM) |
| Qty 8: Hot-swappable SATA3 SSDs |
| Qty 2: Front Panel USB 3.0 Port |
| Blu-ray SATA burner |
| 950W N+1 Redundant Power Supply |
| 4U Custom Rack Mount Chassis |
| NVIDIA RTX GPU |
| 5 add-in card slots |
| Environmental Testing |
| Supports MIL-STD-810G environments |
| Secured Cargo by US Highway Truck Transport |
| C17 Air Transport (Non-Operating, Procedures I Only) |
| Operating Temperature 5°C to +50°C |
| Storage Temperature -40°C to +70°C |
| Operating Systems Options |
| Microsoft Windows 10 Pro |
| Microsoft Windows 11 Pro |
| Microsoft Windows SHB |
| RedHat |
| Linux |
| VMWare ESXi |
| Specifications |
| Case Dimensions: |
| Height: 4U custom per EIA/ECA-310 |
| Depth: 22″ |
| 0.25” Thick Front Panel: 19.0” ISO Rack |
| Case Material: 0.08” Aluminum |
| Front Finish: Wrinkle Black Powder Coat |
| Text: White |
| Chemical Treatment: MIL-DTL-5541 Class 3 |
| Active air-cooling package |
| Other Features |
| Vandal-Resistant, Momentary, Illuminated Power (Green), Reset (Red), and Alarm (Amber) Switches |
| Front panel accessible drive bays (Qty 8) with removable media for rapid downgrade procedure execution |
| Harsh environment 3-part filter |
| Accessories |
| 20” Solid Bearing Sliding Rack Rails |
| 10’ Power Cords (Qty. 3) |
