Radeus Labs

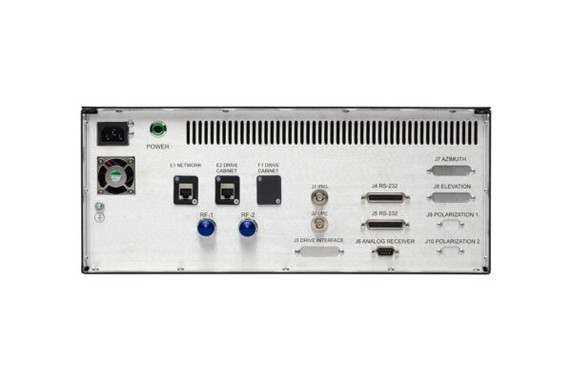

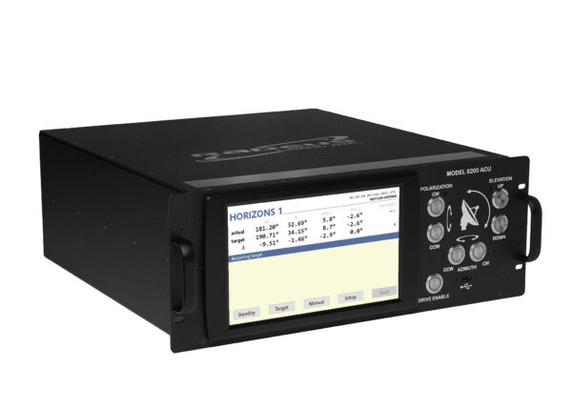

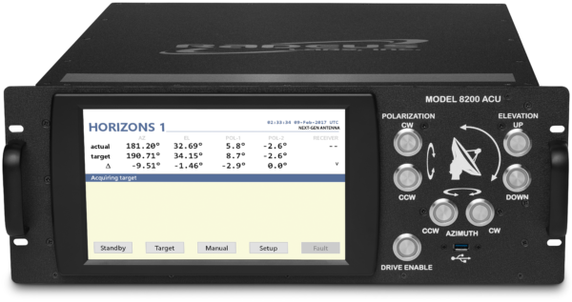

Radeus Labs-Series 8000 Antenna Control System
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The commercial industry’s most-advanced antenna control system meets the requirements of retrofits as well as new installations.
*With the retrofit option, the 8200 ACU is compatible with legacy drive-cabinet interfaces and position-feedback devices such as absolute rotary optical encoders, standard single-speed brushless size 11 resolvers, and two-speed brushless size 20 resolvers.
Features
- Touchscreen controls for all operations
- Efficient, intuitive graphical user interface
- Hardware jog buttons with LED indicators
- Data and parameters secured in nonvolatile storage
- Innovative setup wizard eases installation
- Secure TeamViewer integration for remote and shared ACU operation
- Field-proven in critical applications
Options
- Fiber optic IFL
- IRIG B timecode receiver
- Integrated beacon receiver (L, Ku, Ka, X, S, and C bands supported)
- 25-bit optical encoders and or size-11 resolvers
- CP/LP support
5 customers are viewing this product
Details
The commercial industry’s most-advanced antenna control system meets the requirements of retrofits as well as new installations.
*With the retrofit option, the 8200 ACU is compatible with legacy drive-cabinet interfaces and position-feedback devices such as absolute rotary optical encoders, standard single-speed brushless size 11 resolvers, and two-speed brushless size 20 resolvers.
Features
- Touchscreen controls for all operations
- Efficient, intuitive graphical user interface
- Hardware jog buttons with LED indicators
- Data and parameters secured in nonvolatile storage
- Innovative setup wizard eases installation
- Secure TeamViewer integration for remote and shared ACU operation
- Field-proven in critical applications
Options
- Fiber optic IFL
- IRIG B timecode receiver
- Integrated beacon receiver (L, Ku, Ka, X, S, and C bands supported)
- 25-bit optical encoders and or size-11 resolvers
- CP/LP support
