Poynting

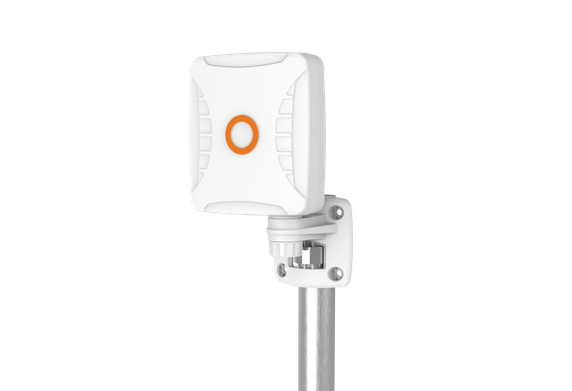

Poynting XPOL-1-5G Plus X-Polarised, Omni-Directional, 4X4 MIMO 5G Antenna, 410 - 6000 MHz, 7dBi
Product Code:
A-XPOL-0001-V3-41
Condition:
New
Weight:
1.45 KGS
Width:
27.10
(cm)
Height:
19.10
(cm)
Depth:
12.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The XPOL-1-5G+ is Poynting’s third generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2x2 or 4x4 MIMO antenna. The antenna has been completely redesigned from previous generations, featuring an all-new enclosure and high-performing antenna design. The XPOL-1-5G+ is now ultra-wideband, covering a broad frequency range from 410 to 6000 MHz. This allows it to be utilized across different cellular operators and technologies, and it is ready for future cellular technologies up to 6GHz for 5G applications. The 4x4 MIMO antenna option provides a 4-in-1 solution that includes four cross-polarised cellular antennas. These antennas deliver exceptional performance with a peak gain of 7 dBi, more than double the peak gain of the previous version (V2). This improvement enables superior signal strength and extended coverage in Fixed Wireless Access (FWA) deployments.
The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further enhancing its performance. This makes the antenna perfect for various application areas, such as urban, suburban, and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust, and vandal resistant, granting it an IP65 rating, suitable for outdoor environments.
Features
- Ultra-wideband coverage from 410 to 6000 MHz
- X-Polarised 4x4 MIMO Antenna
- Wall, Pole, or Window mountable
- High pattern consistency across bands for 4G/5G carrier aggregation
- Low-profile and rugged mechanical design with an IP65 rating
5 customers are viewing this product
Details
The XPOL-1-5G+ is Poynting’s third generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2x2 or 4x4 MIMO antenna. The antenna has been completely redesigned from previous generations, featuring an all-new enclosure and high-performing antenna design. The XPOL-1-5G+ is now ultra-wideband, covering a broad frequency range from 410 to 6000 MHz. This allows it to be utilized across different cellular operators and technologies, and it is ready for future cellular technologies up to 6GHz for 5G applications. The 4x4 MIMO antenna option provides a 4-in-1 solution that includes four cross-polarised cellular antennas. These antennas deliver exceptional performance with a peak gain of 7 dBi, more than double the peak gain of the previous version (V2). This improvement enables superior signal strength and extended coverage in Fixed Wireless Access (FWA) deployments.
The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further enhancing its performance. This makes the antenna perfect for various application areas, such as urban, suburban, and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust, and vandal resistant, granting it an IP65 rating, suitable for outdoor environments.
Features
- Ultra-wideband coverage from 410 to 6000 MHz
- X-Polarised 4x4 MIMO Antenna
- Wall, Pole, or Window mountable
- High pattern consistency across bands for 4G/5G carrier aggregation
- Low-profile and rugged mechanical design with an IP65 rating
