Poynting

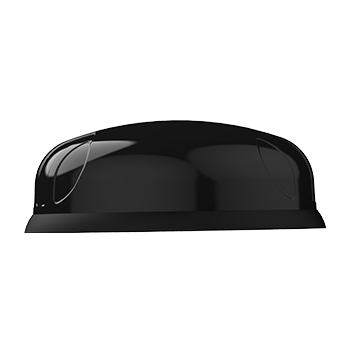

Poynting PUCK-3-V2 3-in-1 Transportation & IoT/M2M Antenna 617 - 6000 MHz, 5G (SISO); 2400 - 7200 MHz, Wi-Fi (SISO); GPS/GLONASS
Product Code:
A-PUCK-0003-V2-01
Condition:
New
Weight:
0.65 KGS
Width:
15.00
(cm)
Height:
12.00
(cm)
Depth:
15.00
(cm)
$104.42
POYNTING’s PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming applications. The PUCK-3 is a 3-in-1 antenna system within a single enclosure, providing reliable and future-proof connectivity for 5G, LTE, Wi-Fi, and GPS applications.
Wideband Cellular Coverage: Features a SISO Cellular antenna covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
Dual-Band SISO Wi-Fi Connectivity: Supports 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with 802.11n, 802.11ac/ax/be standards.
High-Precision GPS/GLONASS Antenna: Active GPS system ensures accurate positioning, operational at temperatures as low as -40ºC.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
The PUCK-3 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G, LTE, Wi-Fi, and GPS connectivity.
Key Features
- 3-in-1 5G high performance multi frequency antenna
- Antenna supports 5G/4G/3G/2G/Wi-Fi-7/LoRa/Bluetooth
- 5G (SISO), Wi-Fi (SISO) and GPS/GLONASS
- Ultra-wideband coverage from 617 – 6000 MHz for cellular
- Robust, vandal resistant and waterproof (IP 69K)
- Ideal for transportation, marine and IoT/M2M use
- Ultra-versatile mounting options for easy installation
Ideal Applications
- Smart utilities: Smart Power, Gas & Water Metering
- Smart Buildings: Climate control, access control, security, irrigation
- Industrial factory automation, robotic machinery and other M2M systems
- Digital Signage
- Warehouses & Logistic systems
- Transport (Busses, Utility & Public Safety)
- Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)
- Agricultural machinery
- Marine: small boats, yachts near to coastlines or inner waters
| Technical Specifications for PUCK-3-V2 | |
| Industry (Application) | Commercial & Industrial Antennas, Transportation & Mobility Antennas |
| Technology | 5G RedCap, Cellular (LTE/2G/3G/4G/5G), GPS/GLONASS, Wi-Fi |
| Cellular Freq. Range | 617 – 6000 MHz |
| Frequency Band | 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-4200MHz, 5000-6000MHz, 6000-7200MHz |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256 |
| LTE/4G Bands | B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106 |
| Wi-Fi Standard | Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Gain | 5.5dBi(LTE), 4.5dBi(Wi-Fi), 21dBi(GPS) |
| Directionality | Omni-Directional |

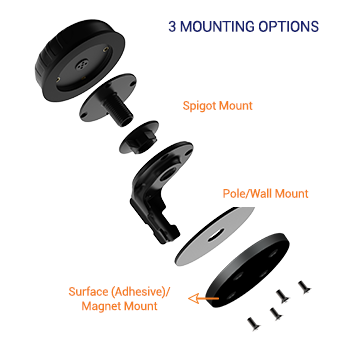

| Mounting Type | Pole Mount, Magnetic Mount, Spigot Mount, Surface/Desk Mount, Wall Mount |
| Connectors | SMA |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP69K |
| LTE Ports | 1 |
| Wi-Fi Ports | 1 |
| GNSS/GPS Ports | 1 |
5 customers are viewing this product
Details
POYNTING’s PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming applications. The PUCK-3 is a 3-in-1 antenna system within a single enclosure, providing reliable and future-proof connectivity for 5G, LTE, Wi-Fi, and GPS applications.
Wideband Cellular Coverage: Features a SISO Cellular antenna covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
Dual-Band SISO Wi-Fi Connectivity: Supports 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with 802.11n, 802.11ac/ax/be standards.
High-Precision GPS/GLONASS Antenna: Active GPS system ensures accurate positioning, operational at temperatures as low as -40ºC.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
The PUCK-3 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G, LTE, Wi-Fi, and GPS connectivity.
Key Features
- 3-in-1 5G high performance multi frequency antenna
- Antenna supports 5G/4G/3G/2G/Wi-Fi-7/LoRa/Bluetooth
- 5G (SISO), Wi-Fi (SISO) and GPS/GLONASS
- Ultra-wideband coverage from 617 – 6000 MHz for cellular
- Robust, vandal resistant and waterproof (IP 69K)
- Ideal for transportation, marine and IoT/M2M use
- Ultra-versatile mounting options for easy installation
Ideal Applications
- Smart utilities: Smart Power, Gas & Water Metering
- Smart Buildings: Climate control, access control, security, irrigation
- Industrial factory automation, robotic machinery and other M2M systems
- Digital Signage
- Warehouses & Logistic systems
- Transport (Busses, Utility & Public Safety)
- Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)
- Agricultural machinery
- Marine: small boats, yachts near to coastlines or inner waters
| Technical Specifications for PUCK-3-V2 | |
| Industry (Application) | Commercial & Industrial Antennas, Transportation & Mobility Antennas |
| Technology | 5G RedCap, Cellular (LTE/2G/3G/4G/5G), GPS/GLONASS, Wi-Fi |
| Cellular Freq. Range | 617 – 6000 MHz |
| Frequency Band | 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-4200MHz, 5000-6000MHz, 6000-7200MHz |
| 5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256 |
| LTE/4G Bands | B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106 |
| Wi-Fi Standard | Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Gain | 5.5dBi(LTE), 4.5dBi(Wi-Fi), 21dBi(GPS) |
| Directionality | Omni-Directional |
| Mounting Type | Pole Mount, Magnetic Mount, Spigot Mount, Surface/Desk Mount, Wall Mount |
| Connectors | SMA |
| MIMO | SISO |
| Polarisation | Linear Polarised |
| Environmental | IP69K |
| LTE Ports | 1 |
| Wi-Fi Ports | 1 |
| GNSS/GPS Ports | 1 |
