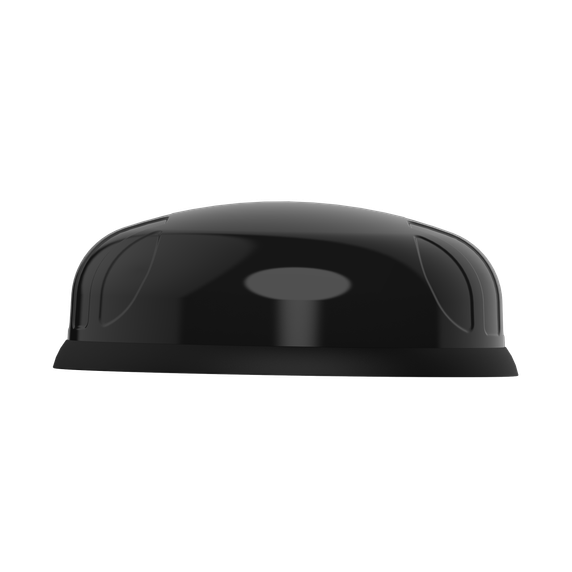

Poynting PUCK-1-V2 SISO Transportation & IoT/M2M Antenna 617 - 6000 MHz; 5G SISO, 5.5dBi

Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, smart meter, smart utilities, transportation, marine and the agricultural/farming markets. The PUCK-1 is a SISO antenna, that offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the cellular antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications.

The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for 5G and LTE throughput and connection stability.

Features

• Ultra-wideband operation from 617 to 6000 MHz for cellular
• Small & Low-profile (Ø100mm x 36mm (h))
• 5G – includes the 3.4 GHz to 6 GHz CBRS & 5G Bands
• Careful mechanical design provides ruggedness, corrosion, water and dust resistance (IP69K)
• Fire Resistant
• UV Stable Enclosure
• Easy installation; multi-implementation options available:

- Spigot Mount

- Magnetic Mount

- Adhesive Surface Mount

- Wall & Pole Mount
