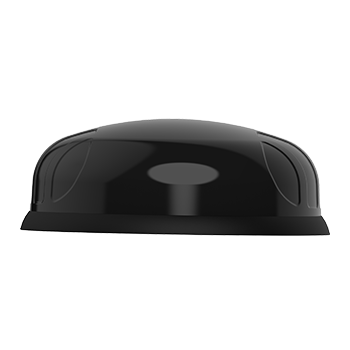

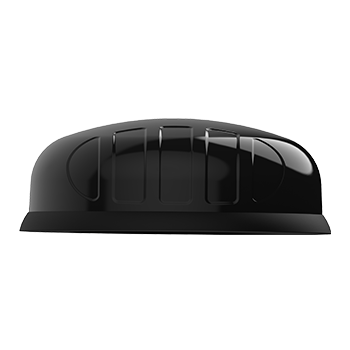

Poynting PUCK-14 4-in-1 Transportation & IoT/M2M Wi-Fi Antenna
Product Code:
A-PUCK-0014-V2
Condition:
New
Weight:
0.00 KGS
Width:
15.00
(cm)
Height:
12.00
(cm)
Depth:
15.00
(cm)
$119.88 - $130.68
The PUCK-14 is a compact, high-performance 4-in-1 antenna system engineered to meet the demands of modern wireless connectivity applications. Featuring advanced 4×4 MIMO capability, the PUCK-14 operates across tri-band Wi-Fi frequencies including 2.4 GHz, 5 GHz, and 6 GHz, ensuring compatibility with the latest Wi-Fi technologies such as 802.11n, 802.11ac, 802.11ax, and 802.11be. The antenna system also supports private 5G networks within the 3.3-4.2 GHz spectrum, making it ideal for enterprise, industrial, transportation, and mission-critical deployments requiring reliable high-speed wireless communication.
Advanced 4×4 MIMO Technology: Delivers improved throughput, enhanced signal reliability, and superior wireless performance for demanding connectivity environments.
Tri-Band Wi-Fi Support: Supports 2.4 GHz, 5 GHz, and 6 GHz Wi-Fi bands for compatibility with Wi-Fi 6, Wi-Fi 6E, and next-generation Wi-Fi 7 technologies.
Private 5G Ready: Optimised for private 5G deployments across the 3.3-4.2 GHz spectrum, ensuring stable and efficient wireless communication.
True Omnidirectional Coverage: Provides reliable signal distribution in all directions to minimise dead zones and improve consistent connectivity.
Pattern Diversity Performance: Reduces interference and enhances wireless stability in high-density network environments.
High Gain Performance: Achieves up to 9 dBi gain for Wi-Fi and up to 6.5 dBi gain across the private 5G frequency band.
Compact Rugged Design: Combines powerful wireless performance with a low-profile compact form factor suitable for space-constrained installations.
Mission-Critical Connectivity: Ideal for enterprise, industrial, transportation, automation, and high-density wireless deployments requiring dependable high-speed connectivity.
The PUCK-14 delivers an exceptional balance between compact design, wireless efficiency, and reliable connectivity performance, making it an ideal solution for advanced Wi-Fi and private 5G applications in enterprise, industrial, transportation, and mission-critical environments.
Key Features
- 4-in-1 high performance omni-directional antenna
- Tri-band Wi-Fi, 2.4 GHz, 5 GHz & 6 GHz frequency bands
- Private 5G compatible at 3.3-4.2 GHz
- 4X4 MIMO for improved performance
- Antenna supports Wi-Fi 6/6e/7/Bluetooth
- Robust, vandal-resistant and waterproof enclosure (IP 69K)
- Ultra-versatile mounting options for easy installation
Ideal Applications
- Enterprise Wi-Fi and private 5G deployments
- Industrial automation and IoT connectivity
- Transportation and mobility applications
- High-density wireless networking environments
- Mission-critical communication systems
- Smart infrastructure and connected facilities
- Warehousing and logistics connectivity
- Campus and commercial wireless deployments
| Technical Specifications for PUCK-14 | |
| Industry (Application) | Commercial & Industrial Antennas, Farming & Agricultural Antennas, IoT M2M & Smart Meter Antennas, Transportation & Mobility Antennas |
| Technology | Private 5G, Wi-Fi |
| 5G Bands | n77, n78 |
| Wi-Fi Freq. Range | 2400 – 7200 Mhz |
| Frequency Band | 2400-2500MHz, 3300-4200MHz, 5000-6000MHz, 6000-7200MHz |
| Wi-Fi Standard | Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Gain | 9dBi |
| Directionality | Omni-Directional |
| Mounting Type | Pole Mount, Magnetic Mount, Spigot Mount, Surface/Desk Mount, Wall Mount |
| Connectors | N-Type, RPSMA |
| MIMO | 4×4 |
| Polarisation | Linear Polarised |
| Environmental | IP69K |
| Wi-Fi Ports | 4 |
| A-PUCK-0014-V2-02 Includes a stainless steel mounting bracket and short spigot mount. Standard PUCK mounting accessories are not supported with this variant. | |
5 customers are viewing this product
Details
The PUCK-14 is a compact, high-performance 4-in-1 antenna system engineered to meet the demands of modern wireless connectivity applications. Featuring advanced 4×4 MIMO capability, the PUCK-14 operates across tri-band Wi-Fi frequencies including 2.4 GHz, 5 GHz, and 6 GHz, ensuring compatibility with the latest Wi-Fi technologies such as 802.11n, 802.11ac, 802.11ax, and 802.11be. The antenna system also supports private 5G networks within the 3.3-4.2 GHz spectrum, making it ideal for enterprise, industrial, transportation, and mission-critical deployments requiring reliable high-speed wireless communication.
Advanced 4×4 MIMO Technology: Delivers improved throughput, enhanced signal reliability, and superior wireless performance for demanding connectivity environments.
Tri-Band Wi-Fi Support: Supports 2.4 GHz, 5 GHz, and 6 GHz Wi-Fi bands for compatibility with Wi-Fi 6, Wi-Fi 6E, and next-generation Wi-Fi 7 technologies.
Private 5G Ready: Optimised for private 5G deployments across the 3.3-4.2 GHz spectrum, ensuring stable and efficient wireless communication.
True Omnidirectional Coverage: Provides reliable signal distribution in all directions to minimise dead zones and improve consistent connectivity.
Pattern Diversity Performance: Reduces interference and enhances wireless stability in high-density network environments.
High Gain Performance: Achieves up to 9 dBi gain for Wi-Fi and up to 6.5 dBi gain across the private 5G frequency band.
Compact Rugged Design: Combines powerful wireless performance with a low-profile compact form factor suitable for space-constrained installations.
Mission-Critical Connectivity: Ideal for enterprise, industrial, transportation, automation, and high-density wireless deployments requiring dependable high-speed connectivity.
The PUCK-14 delivers an exceptional balance between compact design, wireless efficiency, and reliable connectivity performance, making it an ideal solution for advanced Wi-Fi and private 5G applications in enterprise, industrial, transportation, and mission-critical environments.
Key Features
- 4-in-1 high performance omni-directional antenna
- Tri-band Wi-Fi, 2.4 GHz, 5 GHz & 6 GHz frequency bands
- Private 5G compatible at 3.3-4.2 GHz
- 4X4 MIMO for improved performance
- Antenna supports Wi-Fi 6/6e/7/Bluetooth
- Robust, vandal-resistant and waterproof enclosure (IP 69K)
- Ultra-versatile mounting options for easy installation
Ideal Applications
- Enterprise Wi-Fi and private 5G deployments
- Industrial automation and IoT connectivity
- Transportation and mobility applications
- High-density wireless networking environments
- Mission-critical communication systems
- Smart infrastructure and connected facilities
- Warehousing and logistics connectivity
- Campus and commercial wireless deployments
| Technical Specifications for PUCK-14 | |
| Industry (Application) | Commercial & Industrial Antennas, Farming & Agricultural Antennas, IoT M2M & Smart Meter Antennas, Transportation & Mobility Antennas |
| Technology | Private 5G, Wi-Fi |
| 5G Bands | n77, n78 |
| Wi-Fi Freq. Range | 2400 – 7200 Mhz |
| Frequency Band | 2400-2500MHz, 3300-4200MHz, 5000-6000MHz, 6000-7200MHz |
| Wi-Fi Standard | Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Gain | 9dBi |
| Directionality | Omni-Directional |
| Mounting Type | Pole Mount, Magnetic Mount, Spigot Mount, Surface/Desk Mount, Wall Mount |
| Connectors | N-Type, RPSMA |
| MIMO | 4×4 |
| Polarisation | Linear Polarised |
| Environmental | IP69K |
| Wi-Fi Ports | 4 |
| A-PUCK-0014-V2-02 Includes a stainless steel mounting bracket and short spigot mount. Standard PUCK mounting accessories are not supported with this variant. | |
Download
| Download Name | |
| Poynting PUCK-14 Datasheet | |
| Poynting PUCK-14 User Guide | |
