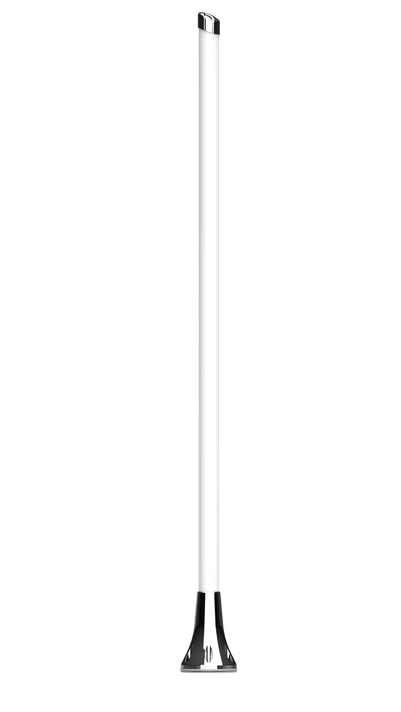

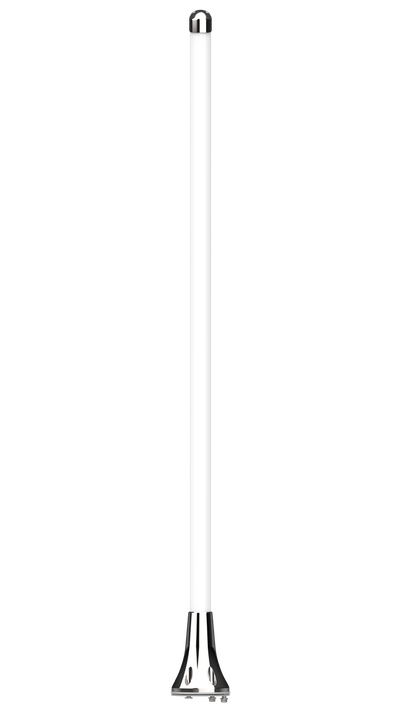

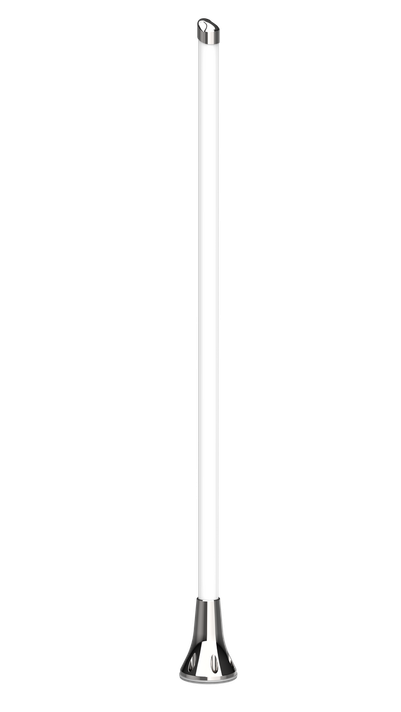

Poynting OMNI-904 High Gain, Omni-Directional, 4x4 MIMO LTE/5G Antenna, 617 - 4200 MHz, 3dBi & 8dBi

The OMNI-904 is a high gain, ultra-wideband antenna, which covers all contemporary LTE/5G frequency bands with excellent balanced gain across all frequencies from 617 to 4200 MHz. The antenna offers 4x4 MIMO capability from its vertically separated radiating elements, all in the same single radome. The antenna design combines two low gain and two high gain omni-directional antennas, which allows for superior pattern control over the entire frequency range. This unique combination of low and high gain omni-directional antennas makes the OMNI-904 a true omni-directional 4x4 MIMO antenna, suitable for marine and coastal applications.

The antenna comes with an IP68 protection rating against dust and water ingress, making it ideal for most severe storms at sea. The radome is also fully salt water protected so that it can be used in highly corrosive environments, thanks to the fiberglass radome material. The OMNI-904 guarantees signal reception almost everywhere and is usable in all part of the world. The ultra-wideband performance makes the antenna future proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 4200 MHz for inland use.

Features

• High performance, 4x4 MIMO omni-directional antenna
• Wideband antenna for LTE/5G (617 to 4200 MHz)
• Includes Band 71 (617 to 698 MHz) and 3.5 GHz 5G band
• Robust and weather resistant enclosure with IP 68 rating
• UV and salt-water resistant enclosure
