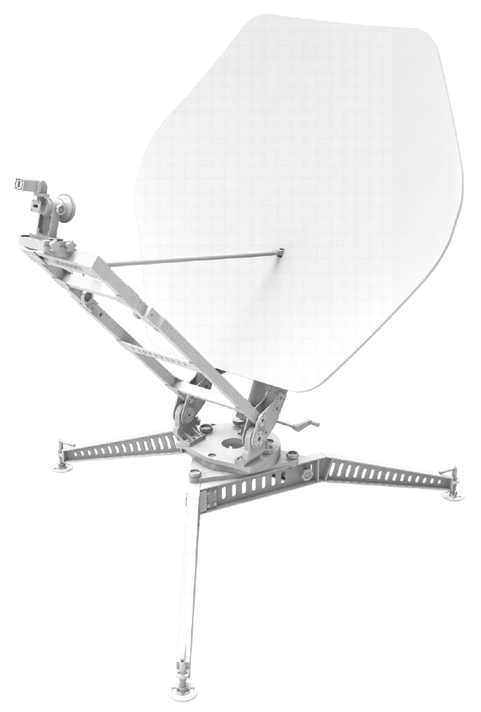

Product image for WAYFARER 1.5m Ku-Band Manual Flyaway Antenna - Single Offset

Zoom the image with the mouse

Norsat International Inc.

Norsat WFM-100052 WAYFARER 1.5m Ku-Band Manual Flyaway Antenna - Single Offset

Name: Norsat WFM-100052 WAYFARER 1.5m Ku-Band Manual Flyaway Antenna - Single Offset
Brand: Norsat International Inc.
SKU: WFM-100052
Availability: OutOfStock

No reviews yet

Product Code: WFM-100052

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.00 KGS

Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

KEY SPECIFICATIONS
Acquisition And Tracking	Manual
Antenna Aperture	1.5 m
Antenna Category	Flyaway
Band	Ku-Band
ANTENNA SPECIFICATIONS
Antenna Type	Single Offset
Azimuth Range	360°
Cross Polarization Isolation	35 dB
Elevation Range	5° to 90°
Movement Platform	Motorized Elevation over Azimuth
Polarization	Linear
Polarization Range	± 90°
Sidelobe	First sidelobe ≤ -14 dB
RF SPECIFICATIONS
Port Isolation Tx-Rx	85 dB
Rx Frequency	10.7 - 12.75 GHz
Rx Gain	43.4+20log(f/12.50GHz) dBi
Rx Interface	WR75
Tx Frequency	13.75 - 14.50 GHz
Tx Gain	44.5+20lg(f/14.25GHz) dBi
Tx Interface	WR75
VSWR	1.3 : 1
ELECTRICAL SPECIFICATIONS
Power Capacity	400W
ENVIRONMENTAL SPECIFICATIONS
Humidity	0 - 100%
Temperature Operational	-40°C to +60°C
Windspeed Operational	11 m/s (ballast weight)
Windspeed Survival	18 m/s (ballast weight)
PHYSICAL SPECIFICATIONS
Antenna Weight	≤ 75Kg (without BUC, LNB, packaging and accessories)
Color	White
ADDITIONAL INFORMATION
Aluminium Content	0 kg
Aluminium Total Value	$ 0
Country Of Origin	Made in China
ECCN Number	EAR99
Ex Works	Hong Kong
Harmonized System Code	8517690000
Warranty	1 year
