Norsat International Inc.
Norsat WFA-100240 WAYFARER 1.5m Ku-Band Auto Flyaway Antenna - Single Offset
Product Code:
WFA-100240
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Acquisition And Tracking | Automatic |
| Antenna Aperture | 1.5 m |
| Antenna Category | Flyaway |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Single Offset |
| Auto Acquistion Time | ≤ 3 min |
| Azimuth Range | ±200° |
| Azimuth Velocity | 0.1°/s to 3°/s |
| Cross Polarization Isolation | 35 dB |
| Elevation Range | 10° to 90° |
| Elevation Veolcity | 0.1°/s to 1°/s |
| Movement Overrides | Manual (Azimuth/Elevation) |
| Movement Platform | Motorized Elevation over Azimuth |
| Pointing Accuracy | ≤0.3 dB (R.M.S) |
| Polarization | Linear |
| Polarization Range | ± 90° |
| Polarization Velocity | 0.1°/s to 3°/s |
| Sidelobe | First sidelobe ≤ -14 dB |
| Tracking Mode | Beacon/DVB carrier |
| RF SPECIFICATIONS | |
| Port Isolation Tx-Rx | 85 dB |
| Rx Frequency | 10.7 - 12.75 GHz |
| Rx Gain | 43.4+20log(f/12.50GHz) dBi |
| Rx Interface | WR75 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 44.6+20lg(f/14.25GHz) dBi |
| Tx Interface | WR75 |
| VSWR | 1.3 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220VAC 50Hz, ≤ 600W (excluding BUC, windless condition) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP65 |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -30°C to +60°C |
| Windspeed Operational | 11 m/s (ballast weight) |
| Windspeed Survival | 18 m/s (ballast weight) |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Handheld Type | 1U control unit |
| Number Of Cases | 5 standard |
| Reflector Material | Carbon fiber |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Acquisition And Tracking | Automatic |
| Antenna Aperture | 1.5 m |
| Antenna Category | Flyaway |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Single Offset |
| Auto Acquistion Time | ≤ 3 min |
| Azimuth Range | ±200° |
| Azimuth Velocity | 0.1°/s to 3°/s |
| Cross Polarization Isolation | 35 dB |
| Elevation Range | 10° to 90° |
| Elevation Veolcity | 0.1°/s to 1°/s |
| Movement Overrides | Manual (Azimuth/Elevation) |
| Movement Platform | Motorized Elevation over Azimuth |
| Pointing Accuracy | ≤0.3 dB (R.M.S) |
| Polarization | Linear |
| Polarization Range | ± 90° |
| Polarization Velocity | 0.1°/s to 3°/s |
| Sidelobe | First sidelobe ≤ -14 dB |
| Tracking Mode | Beacon/DVB carrier |
| RF SPECIFICATIONS | |
| Port Isolation Tx-Rx | 85 dB |
| Rx Frequency | 10.7 - 12.75 GHz |
| Rx Gain | 43.4+20log(f/12.50GHz) dBi |
| Rx Interface | WR75 |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | 44.6+20lg(f/14.25GHz) dBi |
| Tx Interface | WR75 |
| VSWR | 1.3 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 220VAC 50Hz, ≤ 600W (excluding BUC, windless condition) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP65 |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -30°C to +60°C |
| Windspeed Operational | 11 m/s (ballast weight) |
| Windspeed Survival | 18 m/s (ballast weight) |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Handheld Type | 1U control unit |
| Number Of Cases | 5 standard |
| Reflector Material | Carbon fiber |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
Related Products
Norsat International Inc.

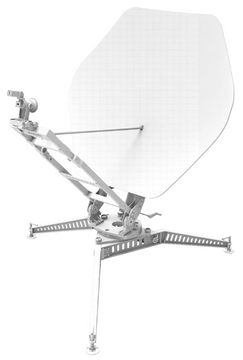

Norsat WFM-100052 WAYFARER 1.5m Ku-Band Manual Flyaway Antenna - Single Offset
