Norsat International Inc.

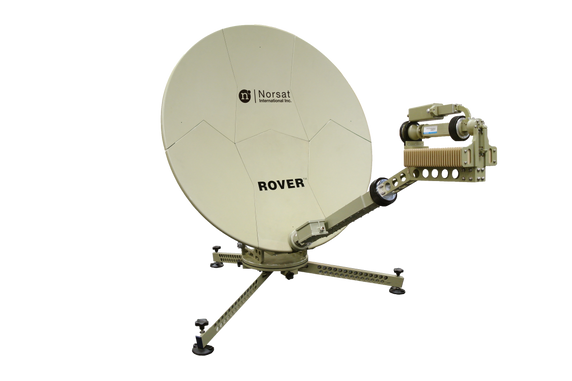

Norsat RO100KAM004 Rover 1.0 m Ka-Band Manual Acquire Flyaway Antenna

(No reviews yet) Write a Review
SKU:
RO100KAM004
MPN:
RO100KAM004
Condition:
New
Availability:
YES
Weight:
32.00 KGS
Width:
170.00 (cm)
Height:
124.00 (cm)
Depth:
98.00 (cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545

Description

The ROVER™ is an ultra-lightweight fly-away satellite terminal with unsurpassed reliability, advanced assisted-acquire technology, and a flexible deployment platform. Available in both 1.0 and 1.2 m antenna sizes, the ROVER’s components can be tightly integrated for rapid deployment or separated into indoor and outdoor units for safe operation in dangerous terrain or situations. With IATA compliant packaging and a tool-free assembly process, the ROVER is easy to transport and operate, with military grade durability you can rely on wherever your mission takes you.


KEY SPECIFICATIONS
Product Family ROVER
Band Ka-Band
Reflector Diameter 1.0 m
Acquisition & Tracking Manual
Transmit Frequency Ka-Band (Military): 30 - 31 GHz
Receive Frequency Ka-Band (Military): 18.20 - 21.20 GHz

ANTENNA SPECIFICATIONS
Polarization Circular / Linear RHCP/LHCP or LHCH/RHCP
Feed Configuration 2-port circular
Cross-Polarization Isolation n/a
Axial Ratio <1.0 dB in Tx Band
Elevation Range 5° to 85°, Manual with fine adjust
Azimuth Range +/- 300°, Manual with fine adjust
Primary Antenna Power AC 110/220 VAC (50/60 Hz )
Standard BUC Options 4W, 10W, 25W, 50W

RF SPECIFICATIONS
Movement Platform Elevation over Azimuth
G/T 21.5 dB/K
EIRP 53.5 dBW
Tx Gain >48.0 dBi
Rx Gain >44.0 dBi
Output Power( P1dB) 7 dBm
Max SSG Variation +/- 1 dB per 36 MHz
Spectral Regrowth -26 dBc
Reference Signal Frequency 0 +/- 5 dBm @ 10 MHz
Phase Noise @ 1KHz offset -75 dBc/Hz
Phase Noise @ 10KHz offset -80 dBc/Hz
Phase Noise @ 100KHz offset -95 dBc/Hz

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -30°C to +55 °C, meets MIL-STD-810G
Rainfall - Operational 15 mm/h, meets MIL-STD-810G
Rainfall - Survival 30 mm/h, meets MIL-STD-810G
Windspeed - Operational 60 km/h
Windspeed - Survival 100 km/h
Humidity 5-95 % non-condensing, meets MIL-STD-810G
Salt Mist Meets MIL-STD-810G
Vibration - Operational Meets MIL-STD-810G
Vibration - Loose Cargo Meets MIL-STD-810G
Vibration - Random Meets MIL-STD-810G
Shock Meets MIL-STD-810G

PHYSICAL SPECIFICATIONS
IATA Cases available Optional
Number of cases 2 standard, 3 IATA
