Norsat International Inc.

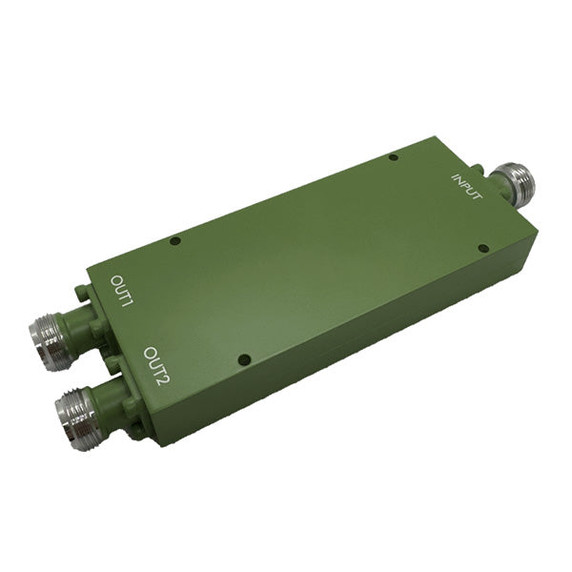

Norsat PD8GFS RF Power Divider

Name: Norsat PD8GFS RF Power Divider
Brand: Norsat International Inc.
SKU: PD8GFS
Price: 2000 USD
Availability: InStock

No reviews yet

Product Code: PD8GFS

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.00 KGS

Width: 4.90 (cm)

Height: 1.27 (cm)

Depth: 10.39 (cm)

$2,000.00

KEY SPECIFICATIONS
Bandwith	20.5 GHz
Frequency	6 - 26.5 GHz
Noise Figure	N/A
RF SPECIFICATIONS
Gain	N/A
Gain Ripple	N/A
Input VSWR	2:1 max.
Insertion Loss	2.2 dB max (6000-18000MHz) 3.2 dB max (18000-26500MHz)
Isolation	14 dB min (6000-26500MHz)
Ripple	N/A
ELECTRICAL SPECIFICATIONS
Amplitude Balance	0.8 dB max (6000-18000MHz) 1.2 dB max (18000-26500MHz)
Coupling	9 dB nom.
Impedance	50 ohms
Power Handling Avg	10 W max.
INTERFACE SPECIFICATIONS
Connectors Type	SMA-F
ENVIRONMENTAL SPECIFICATIONS
Indoor Status	Yes
PHYSICAL SPECIFICATIONS
Product Height	12.7 mm
Product Length	103.9 mm
Product Width	49 mm
ADDITIONAL INFORMATION
ECCN Number	EAR99
Harmonized System Code	8548000000
Unit Packaging Weight	230g
