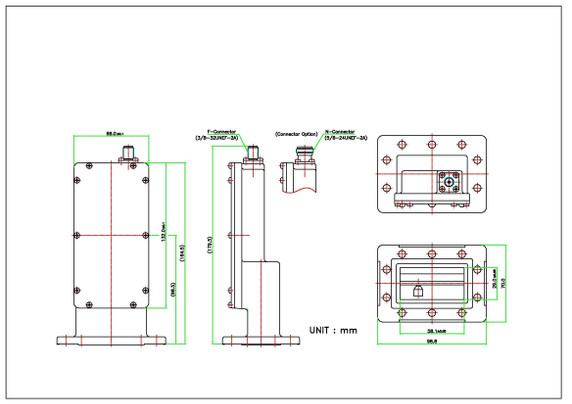

Norsat LNB-100247 Single-band C-Band LNB
Product Code:
LNB-100247
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.58 KGS
Width:
9.88
(cm)
Height:
7.00
(cm)
Depth:
16.45
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.625 - 4.8 GHz |
| LO Frequency 1 | 5.75 GHz |
| LO Stability | ±25 kHz max. |
| Noise Temperature Max | 30K |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 2150 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (40Mhz) | 1 dB p-p max. |
| Gain Flatness (Over Full Band) | 5 dB p-p max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | +5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | CPR-229 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP67 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 0.0700 m |
| Product Length | 0.1645 m |
| Product Weight | 0.575 kg |
| Product Width | 0.0988 m |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
