Norsat International Inc.

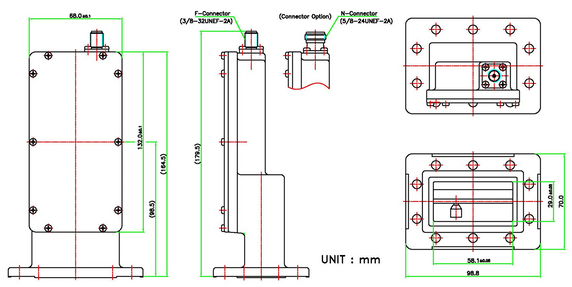

Norsat LNB-100009 LNB-100009 C-Band Single Band PLL LNB
Product Code:
LNB-100009
Condition:
New
Availability:
826 pcs
Weight:
0.58 KGS
Width:
7.00
(cm)
Height:
9.90
(cm)
Depth:
16.50
(cm)
$422.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 4.50 - 4.80 GHz |
| LO Frequency 1 | 5.75 GHz |
| LO Stability | ±2 kHz |
| LO Type | PLL |
| Noise Temperature | 30K max. |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1250 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness | 6 dB p-p max. (0°C - 60°C) |
| Gain Flatness (Over Full Band) | 5 dB p-p max. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | CPR 229G waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP67 |
| Temperature Operational | 0 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 99 mm |
| Product Length | 165 mm (excludes connector) |
| Product Weight | 0.575 kg |
| Product Width | 70 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.45 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 1.125 |
| Country Of Origin | Made in Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 70 mm |
| Package Length Case 1 | 190 mm |
| Package Width Case 1 | 100 mm |
| Unit Package Dimensions | 190 x 100 x 70 mm |
| Unit Package Weight | 0.68 kg |
| Warranty | 1 year |
