Norsat International Inc.

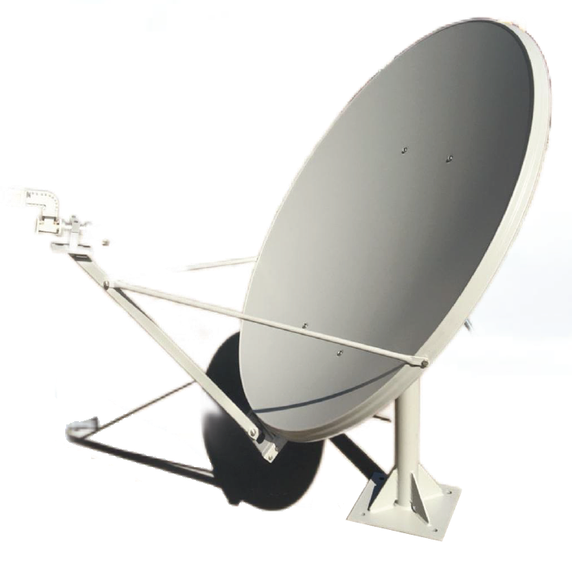

Norsat ES-100067 ANCHOR 1.2m Ka-Band Manual Earth Station Antenna
Product Code:
ES-100067
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2 m |
| Antenna Category | Earth Station |
| Band | Ka-Band |
| Customization | Designed to be compatible with a 3W transceiver |
| ANTENNA SPECIFICATIONS | |
| 90% Peaks Under Following Envelope | 29 - 25 logθ(1°≤θ＜20°) |
| Antenna Drive Mode | Manual structure |
| Antenna Type | Single Offset |
| Number Of Ports | 2-ports |
| Polarization | Circular |
| Sidelobe | ≤ -14dB (First Sidelobe) |
| RF SPECIFICATIONS | |
| Isolation | ≥ 86 dB |
| Noise Temperature Elevation 10° | ≤ 122 K |
| Noise Temperature Elevation 20° | ≤ 86 K |
| Rx -3Db Beamwidth | 0.92° |
| Rx Axial Ratio 2 Ports | ≤ 1.5 dB |
| Rx Feed Insertion Loss | ≤0.3 dB |
| Rx Frequency | 17.7 - 21.2 GHz |
| Rx Gain | ≥45.88+20log(f/19.0GHz)dBi |
| Rx VSWR | 1.25 : 1 |
| Tx -3Db Beamwidth | 0.6° |
| Tx Axial Ratio 2 Ports | ≤ 1.5 dB |
| Tx Feed Insertion Loss | ≤0.4 dB |
| Tx Frequency | 27.5 - 31GHz |
| Tx Gain | ≥49.55+20log(f/29.0GHz)dBi |
| Tx VSWR | 1.25 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Capacity | 1 kW |
| INTERFACE SPECIFICATIONS | |
| Rx Interface | WR-42 |
| Tx Interface | WR-28 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0% - 100% |
| Ice Load | Icing 13mm: normal work; Icing 25mm: no damage |
| Seismic Capacity Horizontal | 0.3 G |
| Seismic Capacity Vertical | 0.1 G |
| Temperature Operational | -45°C to +70°C |
| Windspeed | 72 km/h - 97 km/h，decreased accuracy under 102 km/h |
| Windspeed Stowed | 200 km/h |
| PHYSICAL SPECIFICATIONS | |
| Motion Range AZ | 0 - 360° (continuous) |
| Motion Range EL | 5° - 90° (continuous) |
| Product Package Volume | 5 packages, dimension: 9.88 CBM |
| RMS | ≤ 0.35 mm |
| Structure | EL over AZ |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | 5A991.B |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.2 m |
| Antenna Category | Earth Station |
| Band | Ka-Band |
| Customization | Designed to be compatible with a 3W transceiver |
| ANTENNA SPECIFICATIONS | |
| 90% Peaks Under Following Envelope | 29 - 25 logθ(1°≤θ＜20°) |
| Antenna Drive Mode | Manual structure |
| Antenna Type | Single Offset |
| Number Of Ports | 2-ports |
| Polarization | Circular |
| Sidelobe | ≤ -14dB (First Sidelobe) |
| RF SPECIFICATIONS | |
| Isolation | ≥ 86 dB |
| Noise Temperature Elevation 10° | ≤ 122 K |
| Noise Temperature Elevation 20° | ≤ 86 K |
| Rx -3Db Beamwidth | 0.92° |
| Rx Axial Ratio 2 Ports | ≤ 1.5 dB |
| Rx Feed Insertion Loss | ≤0.3 dB |
| Rx Frequency | 17.7 - 21.2 GHz |
| Rx Gain | ≥45.88+20log(f/19.0GHz)dBi |
| Rx VSWR | 1.25 : 1 |
| Tx -3Db Beamwidth | 0.6° |
| Tx Axial Ratio 2 Ports | ≤ 1.5 dB |
| Tx Feed Insertion Loss | ≤0.4 dB |
| Tx Frequency | 27.5 - 31GHz |
| Tx Gain | ≥49.55+20log(f/29.0GHz)dBi |
| Tx VSWR | 1.25 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Capacity | 1 kW |
| INTERFACE SPECIFICATIONS | |
| Rx Interface | WR-42 |
| Tx Interface | WR-28 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0% - 100% |
| Ice Load | Icing 13mm: normal work; Icing 25mm: no damage |
| Seismic Capacity Horizontal | 0.3 G |
| Seismic Capacity Vertical | 0.1 G |
| Temperature Operational | -45°C to +70°C |
| Windspeed | 72 km/h - 97 km/h，decreased accuracy under 102 km/h |
| Windspeed Stowed | 200 km/h |
| PHYSICAL SPECIFICATIONS | |
| Motion Range AZ | 0 - 360° (continuous) |
| Motion Range EL | 5° - 90° (continuous) |
| Product Package Volume | 5 packages, dimension: 9.88 CBM |
| RMS | ≤ 0.35 mm |
| Structure | EL over AZ |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | 5A991.B |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Warranty | 1 year |
