Norsat International Inc.

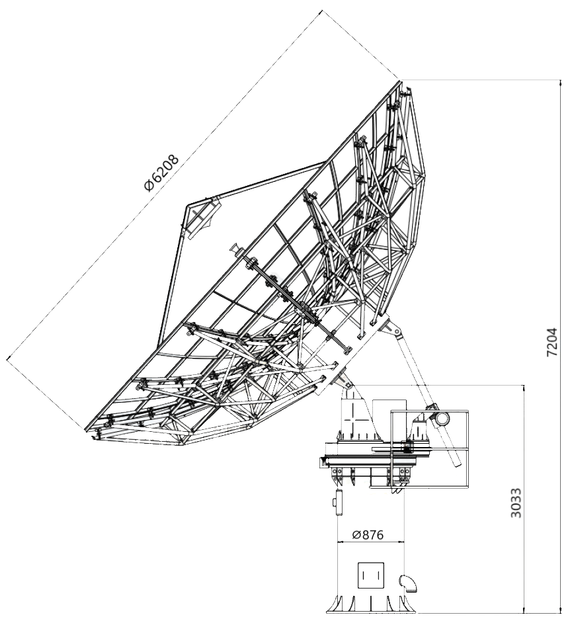

Norsat ES-100064 ANCHOR 6.2m Ka-Band Earth Station Antenna - Rx Only
Product Code:
ES-100064
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
Please note: Installation services are not included with this product.
| KEY SPECIFICATIONS | |
| Acquisition And Tracking | Automatic |
| Antenna Aperture | 6.2 m |
| Antenna Category | Earth Station |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Drive Mode | 3-axis motorized structure |
| Basic Function | Manual control, position preset, position preset, scan, track, collection, remote control, etc. |
| Control Mode | Manual, Automatic (adjustable speed) |
| Control System | Step tracking |
| Number Of Ports | 2-ports |
| Polarization | Circular/Linear (Motorized Switchable) |
| Position Control Resolution | 0.001° |
| Position Display Resolution | 0.001° |
| Preset Satellite | 50 satellites |
| Rx Axial Ratio 2 Ports | ≤1.5 dB |
| Sidelobe | ≤-14dB |
| RF SPECIFICATIONS | |
| Noise Temperature Elevation 10° | 126.3 K |
| Noise Temperature Elevation 20° | 87.5 K |
| Noise Temperature Elevation 50° | 61.8 K |
| Rx -3Db Beam Width | 0.18° |
| Rx Feed Insertion Loss | ≤0.5 dB |
| Rx Frequency | 17.2 - 22.2 GHz |
| Rx Gain | ≥59.95+20lg(f/19.0GHz) |
| Rx VSWR | 1.35 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | ≤5 kW, 220V±10%, 50/60Hz, 380V±10%, 50/60Hz |
| INTERFACE SPECIFICATIONS | |
| Rx Interface | WR-42 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% |
| Temperature Operational | -30°C to +70°C |
| Weatherproofing | With dust-proof, waterproof, mildew-proof, anti-corrosion and other measures |
| Windspeed Operational | 72 km/h |
| Windspeed Survival | 120 km/h |
| PHYSICAL SPECIFICATIONS | |
| Antenna Description | Main reflector includes 16 pieces segmented panels, antenna overall weight is around 6T |
| Antenna Type | Turntable (AZ: dual motors, EL: jack screw) |
| Motion Range AZ | 0° - 350° continuous |
| Motion Range EL | 5° - 90° |
| Motion Range POL | ±90° |
| Reflector Material | Aluminum |
| Structure | LMC / FMC |
| Surface Accuracy RMS | ≤0.3 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Unit Package Weight | 3590 kg |
| Warranty | 1 year |
