Norsat International Inc.

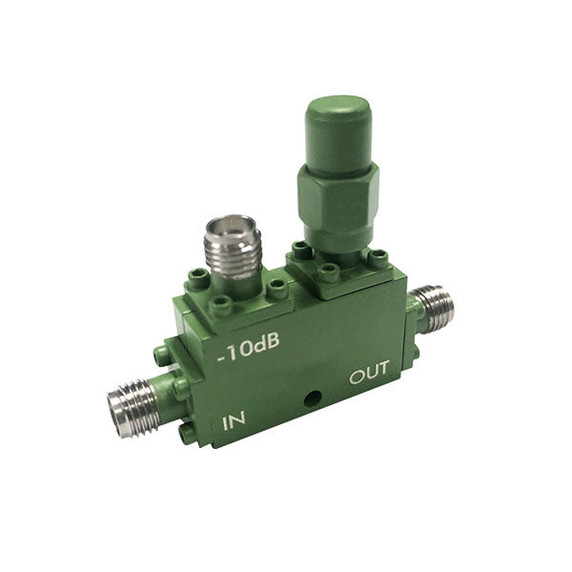

Norsat COU10D Directional Coupler

Name: Norsat COU10D Directional Coupler
Brand: Norsat International Inc.
SKU: COU10D
Price: 700 USD
Availability: InStock

No reviews yet

Product Code: COU10D

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.00 KGS

Width: 1.75 (cm)

Height: 0.97 (cm)

Depth: 5.08 (cm)

$700.00

KEY SPECIFICATIONS
Bandwith	6 GHz
Frequency	2 - 8 GHz
Noise Figure	N/A
RF SPECIFICATIONS
Gain	N/A
Gain Ripple	N/A
Input VSWR	1.25:1 max.
Insertion Loss	1.00 dB max.
Isolation	32 dB typ.
Ripple	N/A
ELECTRICAL SPECIFICATIONS
Coupling	10 ± 1.0 dB
Impedance	50 ohms
Power Handling Avg	50 W max.
INTERFACE SPECIFICATIONS
Connectors Type	SMA-F
ENVIRONMENTAL SPECIFICATIONS
Indoor Status	Yes
PHYSICAL SPECIFICATIONS
Product Height	9.7 mm
Product Length	50.8 mm
Product Width	17.5 mm
ADDITIONAL INFORMATION
ECCN Number	EAR99
Harmonized System Code	8525503035
Unit Packaging Weight	28 g
