Nextivity

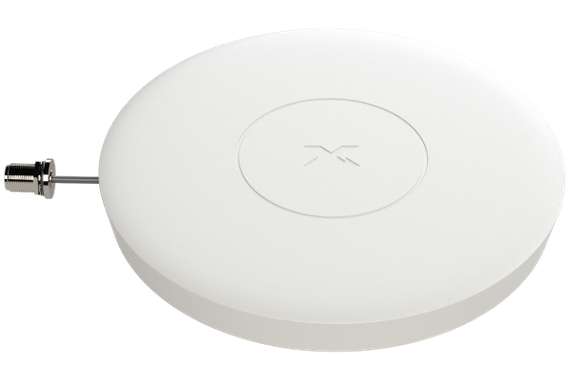

Nextivity A91-JV4-C00 Smart Server Antenna
Product Code:
A91-JV4-C00
Condition:
New
Weight:
1.20 KGS
Width:
26.30
(cm)
Height:
7.40
(cm)
Depth:
25.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Nextivity Smart Server Antenna delivers 360° indoor coverage with built-in intelligence for real-time network monitoring. Designed for seamless integration with CEL-FI and SHIELD systems, it supports public cellular, public safety, and CBRS networks including 4G, 5G, and P25. Its low-profile form enables flexible ceiling installation, while compatibility with low power IoT sensors and our panic button service futureproofs your DAS solution. With centralized control through the WAVE Portal and WAVE PRO app, this antenna supports your connectivity infrastructure for advanced applications—ensuring reliable, secure, and scalable indoor wireless performance.
Features and benefits include:
- Server-Side Monitoring: Remotely track antenna and network health in real time—including signal strength, system status, and critical performance metrics—through the Nextivity WAVE Portal.
- Nextivity Ecosystem Integration: Engineered for plug-and-play compatibility for public cellular (CEL-FI), public safety (SHIELD), Private 5G, and other WAVE Edge Services - working seamless across 4G, 5G, P25, and more.
- Omnidirectional Coverage: Low profile omnidirectional antenna provides 360-degree coverage, ensuring a strong and consistent signal reception from all directions within the indoor space.
- IoT Sensor Compatibility: Supports integration with IoT-enabled devices such as panic buttons, temperature sensors, and more— enabling advanced automation and safety applications within your network.
- Installation Flexibility: Compact and lightweight design enables simple installation on dropped or hard ceilings with included accessories. Comes with integrated DC power inserter.
| Electrical Specifications | ||||||
| Frequency Band | 450 | 600,700 | 800, 900 | 1700, 1800 | 1900, 2000, 2100, 2300, 2400, 2500, 2600 |
3300, 3500, 3600, 3700, 3800., 4000 |
| Average Gain (Typ.) | 2.2 dB | 2.5 dB | 3.3 dB | 3.3 dB | 3.8 dB | 3.3 dB |
| Return Loss | -7 dB typ. | |||||
| BLE Frequency | 2402-2480 MHz for path loss measurement and design optimization using WAVE PRO App | |||||
| BLE Output Power | 8 dBm | |||||
| Input Voltage | 3.3 to 13.2 VDC | |||||
| Input Voltage Interface | 2-pin terminal block to provide DC bias using the included power inserter | |||||
| Impedance | 50 Ω nom. | |||||
| Polarization | Horizontal | |||||
| Antenna Technology | SISO | |||||
| Radiation Pattern | Omni | |||||
| Input Power | 2 W max. | |||||
| Connector | N-type (f) | |||||
| Pigtail Cable | 0.82 ft (0.25 m) Black Jacket RG402 | |||||
| Ordering Information | ||
| KIT# | A91-JV4-C00 | |
| Regions | AMER/EMEA/APAC | |
| Frequency | 450-4200 MHz | |
| Compatibility | SHIELD EXTEND Coverage Unit F41-8XCUB SHIELD SOLO L41-7EB CEL-FI QUATRA 4000c Coverage Unit Q41-RECU CEL-FI QUATRA EVO Coverage Units Q41-BXCU, I41-WXCU |
CEL-FI QUATRA 4000e Coverage Units Q41-EECU, Q41-HXCU CEL-FI QUATRA EVO Coverage Unit Q41-HXCU-2 |
| Box Contents | Smart Server Antenna | |
| Power Inserter (C11-200-101) | ||
| Dropped Ceiling Mounting Plate & Nut | ||
| Hard Ceiling Mounting Plate | ||
| Mounting Screws and Anchors | ||
| Shipping Dimensions | 10.35 x 10.12 x 2.91 in (263 x 257 x 74 mm) | |
| Shipping Weight | 2.56 lbs (1.2 kg) | |
| GTIN-12 (U.P.C.) | 812037034565 | |
5 customers are viewing this product
Details
The Nextivity Smart Server Antenna delivers 360° indoor coverage with built-in intelligence for real-time network monitoring. Designed for seamless integration with CEL-FI and SHIELD systems, it supports public cellular, public safety, and CBRS networks including 4G, 5G, and P25. Its low-profile form enables flexible ceiling installation, while compatibility with low power IoT sensors and our panic button service futureproofs your DAS solution. With centralized control through the WAVE Portal and WAVE PRO app, this antenna supports your connectivity infrastructure for advanced applications—ensuring reliable, secure, and scalable indoor wireless performance.
Features and benefits include:
- Server-Side Monitoring: Remotely track antenna and network health in real time—including signal strength, system status, and critical performance metrics—through the Nextivity WAVE Portal.
- Nextivity Ecosystem Integration: Engineered for plug-and-play compatibility for public cellular (CEL-FI), public safety (SHIELD), Private 5G, and other WAVE Edge Services - working seamless across 4G, 5G, P25, and more.
- Omnidirectional Coverage: Low profile omnidirectional antenna provides 360-degree coverage, ensuring a strong and consistent signal reception from all directions within the indoor space.
- IoT Sensor Compatibility: Supports integration with IoT-enabled devices such as panic buttons, temperature sensors, and more— enabling advanced automation and safety applications within your network.
- Installation Flexibility: Compact and lightweight design enables simple installation on dropped or hard ceilings with included accessories. Comes with integrated DC power inserter.
| Electrical Specifications | ||||||
| Frequency Band | 450 | 600,700 | 800, 900 | 1700, 1800 | 1900, 2000, 2100, 2300, 2400, 2500, 2600 |
3300, 3500, 3600, 3700, 3800., 4000 |
| Average Gain (Typ.) | 2.2 dB | 2.5 dB | 3.3 dB | 3.3 dB | 3.8 dB | 3.3 dB |
| Return Loss | -7 dB typ. | |||||
| BLE Frequency | 2402-2480 MHz for path loss measurement and design optimization using WAVE PRO App | |||||
| BLE Output Power | 8 dBm | |||||
| Input Voltage | 3.3 to 13.2 VDC | |||||
| Input Voltage Interface | 2-pin terminal block to provide DC bias using the included power inserter | |||||
| Impedance | 50 Ω nom. | |||||
| Polarization | Horizontal | |||||
| Antenna Technology | SISO | |||||
| Radiation Pattern | Omni | |||||
| Input Power | 2 W max. | |||||
| Connector | N-type (f) | |||||
| Pigtail Cable | 0.82 ft (0.25 m) Black Jacket RG402 | |||||
| Ordering Information | ||
| KIT# | A91-JV4-C00 | |
| Regions | AMER/EMEA/APAC | |
| Frequency | 450-4200 MHz | |
| Compatibility | SHIELD EXTEND Coverage Unit F41-8XCUB SHIELD SOLO L41-7EB CEL-FI QUATRA 4000c Coverage Unit Q41-RECU CEL-FI QUATRA EVO Coverage Units Q41-BXCU, I41-WXCU |
CEL-FI QUATRA 4000e Coverage Units Q41-EECU, Q41-HXCU CEL-FI QUATRA EVO Coverage Unit Q41-HXCU-2 |
| Box Contents | Smart Server Antenna | |
| Power Inserter (C11-200-101) | ||
| Dropped Ceiling Mounting Plate & Nut | ||
| Hard Ceiling Mounting Plate | ||
| Mounting Screws and Anchors | ||
| Shipping Dimensions | 10.35 x 10.12 x 2.91 in (263 x 257 x 74 mm) | |
| Shipping Weight | 2.56 lbs (1.2 kg) | |
| GTIN-12 (U.P.C.) | 812037034565 | |
