Microwave Filter Company PD-0518-050-02SF Power Divider, 2 Port, 0.5-18 GHz, SMA Female
Product Code:
PD-0518-050-02SF
Condition:
New
Weight:
1.00 KGS
Width:
13.00
(cm)
Height:
8.00
(cm)
Depth:
10.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
PD-0518-050-02SF is a wideband 2-way in-line power splitter covering the continuous bandwidth of 500 MHz to 18 GHz in a compact enclosure measuring 4.75 x 1.00 x 0.50 inches. The device is RoHS compliant but may be ordered specially with lead solder for military applications. The wide bandwidth covers many of the military radio letter octave bands in one unit. High isolation between outputs of 20dB typical. Connectors are stainless steel for high durability. One product covers the upper band of UHF, L band, S band, C band, X band and Ku band. Our unique design, assembled and tested in USA.
| Product Specifications | |
| Number of Outputs | 2 |
| Frequency Low (MHz) | 500 |
| Frequency High (MHz) | 18000 |
| Isolation dB Typ | 20 |
| Insertion Loss dB Typ | 1.1 |
| Input Power as Splitter W/ Max | 20 |
| Connector | SMA |
5 customers are viewing this product
Details
PD-0518-050-02SF is a wideband 2-way in-line power splitter covering the continuous bandwidth of 500 MHz to 18 GHz in a compact enclosure measuring 4.75 x 1.00 x 0.50 inches. The device is RoHS compliant but may be ordered specially with lead solder for military applications. The wide bandwidth covers many of the military radio letter octave bands in one unit. High isolation between outputs of 20dB typical. Connectors are stainless steel for high durability. One product covers the upper band of UHF, L band, S band, C band, X band and Ku band. Our unique design, assembled and tested in USA.
| Product Specifications | |
| Number of Outputs | 2 |
| Frequency Low (MHz) | 500 |
| Frequency High (MHz) | 18000 |
| Isolation dB Typ | 20 |
| Insertion Loss dB Typ | 1.1 |
| Input Power as Splitter W/ Max | 20 |
| Connector | SMA |
Download
| Download Name | |
| Microwave Filter Company PD-0518-050-02SF Datasheet | |
Related Products
Microwave Filter Company

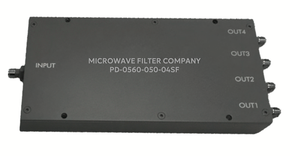

Microwave Filter Company PD-0560-050 Power Divider, 2/4 Port, 0.5-6 GHz, SMA Female
Microwave Filter Company
Microwave Filter Company PD-20185-050-04SF Power Divider, 4 Port, 2-18.5 GHz, SMA Female
Microwave Filter Company

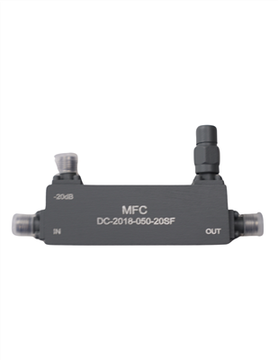

Microwave Filter Company DC-2018-050-10SF Directional Coupler, 2-18 GHz, 10dB, SMA Female
