Microwave Filter Company 7894D C-Band Interference Filter
Product Code:
7894D-X
Condition:
New
Weight:
1.13 KGS
Width:
14.61
(cm)
Height:
6.99
(cm)
Depth:
9.84
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| Product Specifications | |
| Application | WiMAX, Radar & Transmit band Reject Filters |
| Passband (MHz) | 3700/4200 |
| Passband Loss | 0.4 dB TYP @ Fo 0.5 dB APPROX ROLL OFF @ PASSBAND EDGES |
| VSWR / Return Loss | 1.285:1 MAX / 18 dB MIN |
| Group Delay Variation | 8 nS TYP |
| Dimensions (Inches) | 146.1 mm x 98.4 mm x 69.85 mm |
| Rejection | See PDF |
| Rejection 2 | 25 dB @ 3650 / 4250 MHz |
| Weight Lbs | 1.13 kg |
| Receive Band (MHz) | 3700 - 4200 |
| Insertion Loss | 0.4 dB |
| Passband Edge Roll-off | 0.5 dB |
| Return Loss | 18 dB MIN |
| Flanges | CPR229G (IN) / CPR229F / OUT |
| Finish | WHITE GLOSS PAINT |
5 customers are viewing this product
Details
| Product Specifications | |
| Application | WiMAX, Radar & Transmit band Reject Filters |
| Passband (MHz) | 3700/4200 |
| Passband Loss | 0.4 dB TYP @ Fo 0.5 dB APPROX ROLL OFF @ PASSBAND EDGES |
| VSWR / Return Loss | 1.285:1 MAX / 18 dB MIN |
| Group Delay Variation | 8 nS TYP |
| Dimensions (Inches) | 146.1 mm x 98.4 mm x 69.85 mm |
| Rejection | See PDF |
| Rejection 2 | 25 dB @ 3650 / 4250 MHz |
| Weight Lbs | 1.13 kg |
| Receive Band (MHz) | 3700 - 4200 |
| Insertion Loss | 0.4 dB |
| Passband Edge Roll-off | 0.5 dB |
| Return Loss | 18 dB MIN |
| Flanges | CPR229G (IN) / CPR229F / OUT |
| Finish | WHITE GLOSS PAINT |
Download
| Download Name | |

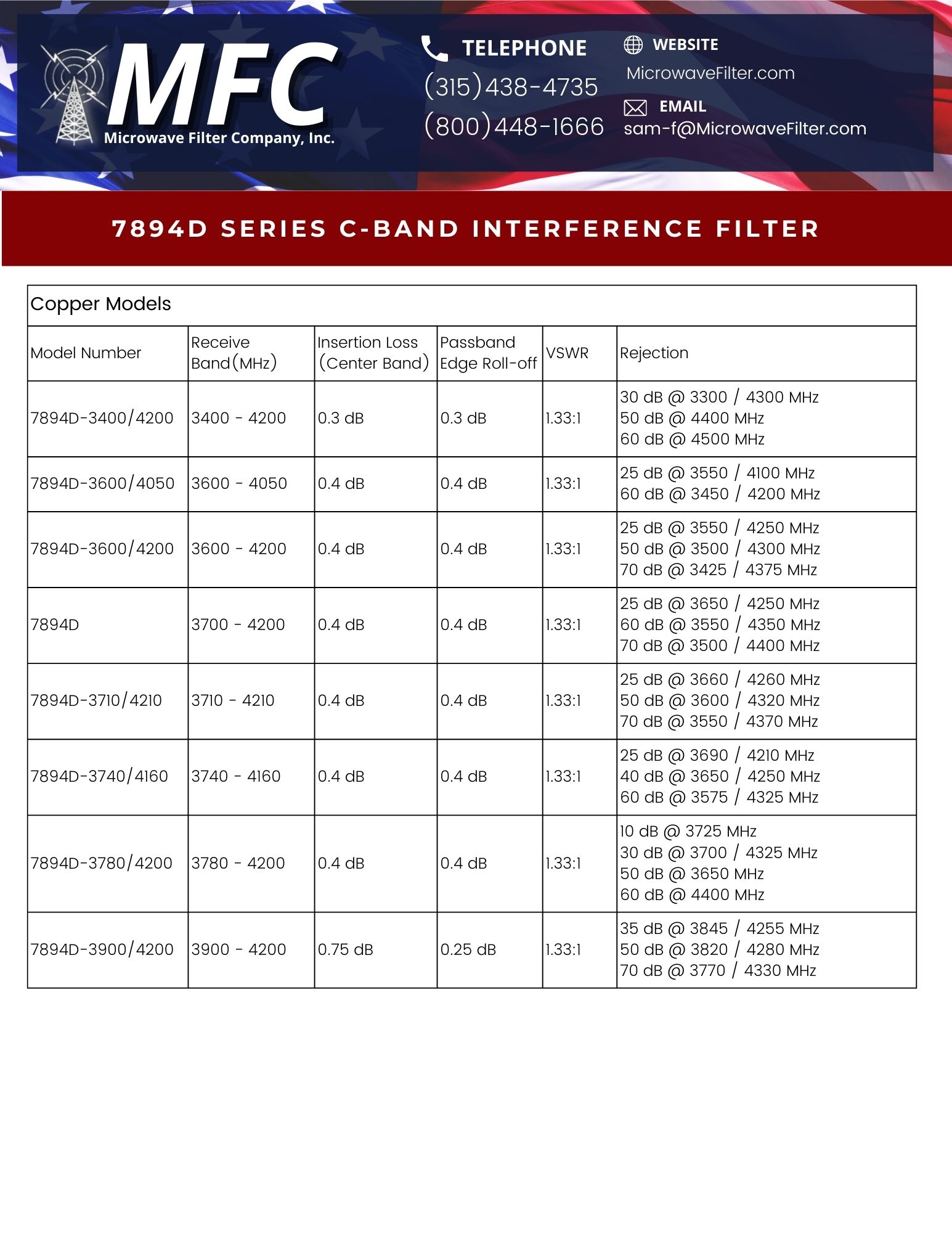

| Microwave Filter Company 7894D Series Datasheet | |
