Microwave Filter Company

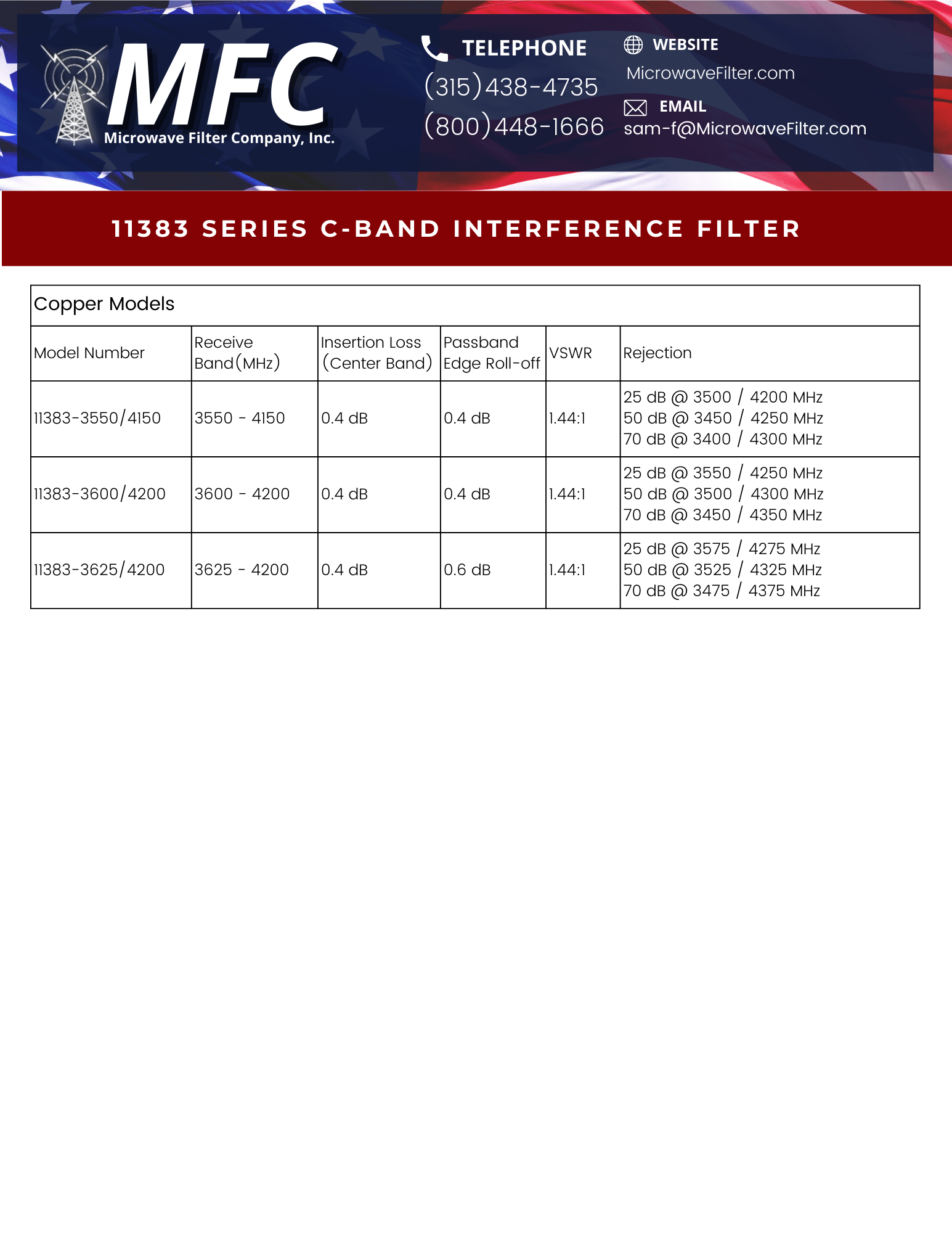

Microwave Filter Company 11383 C-Band Interference Filter
Product Code:
11383
Condition:
New
Weight:
1.00 KGS
Width:
13.65
(cm)
Height:
6.99
(cm)
Depth:
9.84
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| Product Specifications | |
| Application | WiMAX, Radar & Transmit band Reject Filters |
| Passband (MHz) | 3600/4200 |
| Passband Loss | 0.5 dB APPROX @ Fo 1.0 dB TYP @ Passband Edges |
| VSWR / Return Loss | 1.5:1 TYP / 14 dB TYP |
| Dimensions (Inches) | 136.5 mm x 98.4 mm x 69.85 mm |
| Rejection | See PDF |
| Rejection 2 | 25 dB @ 3550 / 4250 MHz, 50 dB @ 3500 / 4300 MHz, 70 dB @ 3450 / 4350 MHz |
| Receive Band (MHz) | 3600 - 4200 |
| Insertion Loss | 0.5 dB |
| Passband Edge Roll-off | 0.5 dB |
| Return Loss | 14 dB TYP |
| Flanges | CPR229G (IN) / CPR229F / OUT |
| Finish | WHITE GLOSS PAINT |
5 customers are viewing this product
Details
| Product Specifications | |
| Application | WiMAX, Radar & Transmit band Reject Filters |
| Passband (MHz) | 3600/4200 |
| Passband Loss | 0.5 dB APPROX @ Fo 1.0 dB TYP @ Passband Edges |
| VSWR / Return Loss | 1.5:1 TYP / 14 dB TYP |
| Dimensions (Inches) | 136.5 mm x 98.4 mm x 69.85 mm |
| Rejection | See PDF |
| Rejection 2 | 25 dB @ 3550 / 4250 MHz, 50 dB @ 3500 / 4300 MHz, 70 dB @ 3450 / 4350 MHz |
| Receive Band (MHz) | 3600 - 4200 |
| Insertion Loss | 0.5 dB |
| Passband Edge Roll-off | 0.5 dB |
| Return Loss | 14 dB TYP |
| Flanges | CPR229G (IN) / CPR229F / OUT |
| Finish | WHITE GLOSS PAINT |
