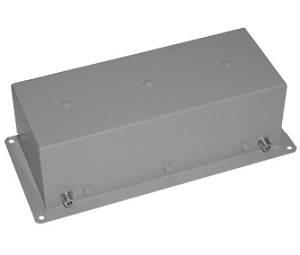

Microwave Filter Company 3634FM Tunable Bandpass Filters
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This high “Q” FM preselector isolates the desired channel from unwanted interference. Three self-locking tuning adjustments provide full FM tunability in the field. Factory tuned to your channel at no additional charge.
| Product Specifications | |
| Application | Single Channel |
| Insertion Loss | 5 dB Max |
| Rejection | 20 dB Min ±800 KHz |
| Return Loss (Min) | 14 dB |
| Dimensions | 10" x 4.5" |
| Connectors | F-Female, N, SMA or BNC-female |
| Impedance | 75 ohms, 50 ohms |
| 3 dB Bandwidth | 350 KHz ±10% |
5 customers are viewing this product
Details
This high “Q” FM preselector isolates the desired channel from unwanted interference. Three self-locking tuning adjustments provide full FM tunability in the field. Factory tuned to your channel at no additional charge.
| Product Specifications | |
| Application | Single Channel |
| Insertion Loss | 5 dB Max |
| Rejection | 20 dB Min ±800 KHz |
| Return Loss (Min) | 14 dB |
| Dimensions | 10" x 4.5" |
| Connectors | F-Female, N, SMA or BNC-female |
| Impedance | 75 ohms, 50 ohms |
| 3 dB Bandwidth | 350 KHz ±10% |
Download
| Download Name | |
| Microwave Filter Company 3634FM Datasheet | |
