Microwave Filter Company

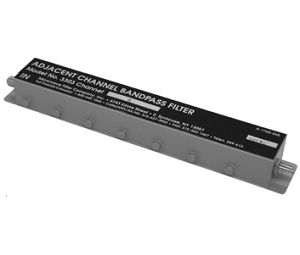

Microwave Filter Company 3303FM Bandpass Filters
Product Code:
3303FM
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
These wideband filters are used to isolate the FM band from reception of VHF, paging and other potentially interfering off-air sources.
| Specifications | ||
| 3303FM-16 | 3303FM-20 | |
| Passband | 92-108 MHz | 88-108 MHz |
| Insertion Loss | 1.5 dB Max | 1.5 dB Max |
| Rejection at 87.75 MHz | 25 dB Min | 3 dB Max |
| Rejection at 83.25 MHz | 50 dB Min | 30 dB Typ |
| Rejection at 121.25 MHz | 50 dB Min | 50 dB Typ |
| Return Loss | 14 dB Min | 14 dB Min |
5 customers are viewing this product
Details
These wideband filters are used to isolate the FM band from reception of VHF, paging and other potentially interfering off-air sources.
| Specifications | ||
| 3303FM-16 | 3303FM-20 | |
| Passband | 92-108 MHz | 88-108 MHz |
| Insertion Loss | 1.5 dB Max | 1.5 dB Max |
| Rejection at 87.75 MHz | 25 dB Min | 3 dB Max |
| Rejection at 83.25 MHz | 50 dB Min | 30 dB Typ |
| Rejection at 121.25 MHz | 50 dB Min | 50 dB Typ |
| Return Loss | 14 dB Min | 14 dB Min |
