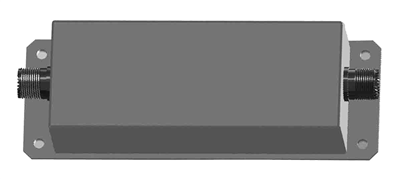

Microwave Filter Company 18473 ESMR/Public Safety Band (800 MHz) Highpass Filter
Product Code:
18473-X
Condition:
New
Weight:
1.00 KGS
Width:
10.80
(cm)
Height:
2.40
(cm)
Depth:
3.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This filter provides smooth operation in the 800 MHz band by eliminating potential interference from nearby lower frequency band operations. Ideal for Mobile Radio applications (e.g. – Law Enforcement Vehicles).
Features:
- Temperature Stable Design
- Ruggedized Construction
Applications:
- Suppresses All 700 MHz Downlink Bands (12, 13, 14 & 17)
- Suppresses 700 MHz Uplink Bands (12 & 17)
- Suppresses All DTV (UHF & VHF) Bands
| Product Specifications | |
| Passband | 806 - 870 MHz |
| Passband Loss | 2 dB Max |
| Passband Power (CW) | 40 Watts Max |
| Rejection | 40 dB Typ from DC - 768 MHz |
| Impedance | 50 ohms |
| Connectors | Mini UHF Female |
| Dimensions | 108 mm x 38 mm x 24 mm |
| VSWR | 1.29:1 Max |
| Operating Temp. Range | -30ºC to +60ºC |
5 customers are viewing this product
Details
This filter provides smooth operation in the 800 MHz band by eliminating potential interference from nearby lower frequency band operations. Ideal for Mobile Radio applications (e.g. – Law Enforcement Vehicles).
Features:
- Temperature Stable Design
- Ruggedized Construction
Applications:
- Suppresses All 700 MHz Downlink Bands (12, 13, 14 & 17)
- Suppresses 700 MHz Uplink Bands (12 & 17)
- Suppresses All DTV (UHF & VHF) Bands
| Product Specifications | |
| Passband | 806 - 870 MHz |
| Passband Loss | 2 dB Max |
| Passband Power (CW) | 40 Watts Max |
| Rejection | 40 dB Typ from DC - 768 MHz |
| Impedance | 50 ohms |
| Connectors | Mini UHF Female |
| Dimensions | 108 mm x 38 mm x 24 mm |
| VSWR | 1.29:1 Max |
| Operating Temp. Range | -30ºC to +60ºC |
