Microwave Filter Company

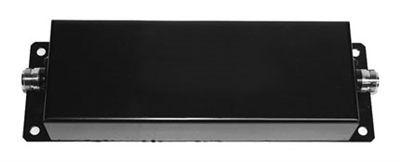

Microwave Filter Company 18150 FM Harmonic Reject Filters
Product Code:
18150
Condition:
New
Weight:
1.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
For Suppressing FM Station Transmitter Harmonics: FM transmitters often generate harmonics - multiples of the transmitter frequency. Some of these cause interference to VHF-TV and UHF-TV reception and paging and cellular radio reception. This series of low pass filters pass the entire FM band with low loss and provide substantial harmonic suppression.
| Product Specifications | |
| Passband (MHz) | 88 - 108 |
| Passband Loss | 0.20 dB Typ, 0.25 dB Max |
| Passband VSWR (Max) | 1.15:1 |
| Rejection | 70 dB Min from 176 - 540 MHz, 60 dB Min from 528 - 1080 MHz |
| Dimensions | 9.50” x 3.00” x 1.50” |
| Connectors | N-Female |
| Transmit Power Rating | 300 Watt (CW) |
5 customers are viewing this product
Details
For Suppressing FM Station Transmitter Harmonics: FM transmitters often generate harmonics - multiples of the transmitter frequency. Some of these cause interference to VHF-TV and UHF-TV reception and paging and cellular radio reception. This series of low pass filters pass the entire FM band with low loss and provide substantial harmonic suppression.
| Product Specifications | |
| Passband (MHz) | 88 - 108 |
| Passband Loss | 0.20 dB Typ, 0.25 dB Max |
| Passband VSWR (Max) | 1.15:1 |
| Rejection | 70 dB Min from 176 - 540 MHz, 60 dB Min from 528 - 1080 MHz |
| Dimensions | 9.50” x 3.00” x 1.50” |
| Connectors | N-Female |
| Transmit Power Rating | 300 Watt (CW) |
