Microwave Filter Company

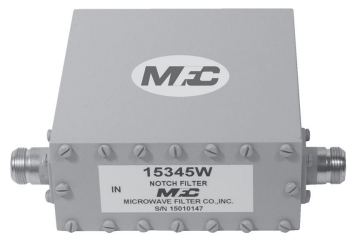

Microwave Filter Company 15345W ISM (900 MHz) Notch Filter
Product Code:
15345W(X/X)
Condition:
New
Weight:
1.00 KGS
Width:
4.00
(cm)
Height:
2.00
(cm)
Depth:
3.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This notch filter is designed specifically to eliminate interference caused by high-powered paging systems operating at 930 MHz. It is compact and sturdy and operates over a wide temperature range, making it ideal for installation in virtually any indoor or outdoor enclosed environment.
| Product Specifications | |
| Application | Notch |
| Passband | 902.5-927.5 MHz (1 Watt Max) |
| Passband Loss | 1.0 dB Typ, 3 dB Typ at 927.5 MHz |
| Notch Frequency | 930 MHz |
| Notch Depth | 35 dB Min |
| Impedance | 50 ohms |
| Connectors | N-Female |
| Operating Temp | -20°C to +50° C |
| MODEL NO. | CONNECTOR OPTION NO.1 | CONNECTOR OPTION NO.2 |
| 15345W | N-FEMALE | N-FEMALE |
| 15345W(F/M) | N-FEMALE | N-MALE |
| 15345W(M/F) | N-MALE | N-FEMALE |
| 15345W(M/M) | N-MALE | N-MALE |
5 customers are viewing this product
Details
This notch filter is designed specifically to eliminate interference caused by high-powered paging systems operating at 930 MHz. It is compact and sturdy and operates over a wide temperature range, making it ideal for installation in virtually any indoor or outdoor enclosed environment.
| Product Specifications | |
| Application | Notch |
| Passband | 902.5-927.5 MHz (1 Watt Max) |
| Passband Loss | 1.0 dB Typ, 3 dB Typ at 927.5 MHz |
| Notch Frequency | 930 MHz |
| Notch Depth | 35 dB Min |
| Impedance | 50 ohms |
| Connectors | N-Female |
| Operating Temp | -20°C to +50° C |
| MODEL NO. | CONNECTOR OPTION NO.1 | CONNECTOR OPTION NO.2 |
| 15345W | N-FEMALE | N-FEMALE |
| 15345W(F/M) | N-FEMALE | N-MALE |
| 15345W(M/F) | N-MALE | N-FEMALE |
| 15345W(M/M) | N-MALE | N-MALE |
