Microwave Filter Company

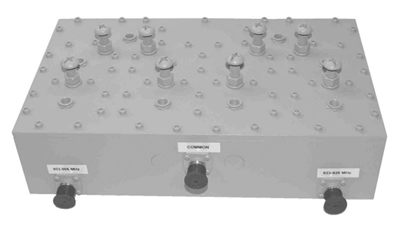

Microwave Filter Company 19427 ISM (900 MHz) Band Diplexer
Product Code:
19427
Condition:
New
Weight:
1.00 KGS
Width:
13.09
(cm)
Height:
3.20
(cm)
Depth:
7.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
This diplexer provides excellent isolation between the transmit and receive bands with minimal signal degradation.
| Product Specifications | |
| Application | Diplexer |
| Passband | 903-906 MHz, 923-926 MHz |
| Passband Loss | 2.0 dB Max |
| VSWR (Max) | 1.2:1 |
| Passband Power (CW) | 10 Watts Max |
| Impedance | 50 ohms |
| Connectors | N-Female |
| Operating Temp | -10°C to +55°C |
| Mutual Isolation | 70 dB Approx |
5 customers are viewing this product
Details
This diplexer provides excellent isolation between the transmit and receive bands with minimal signal degradation.
| Product Specifications | |
| Application | Diplexer |
| Passband | 903-906 MHz, 923-926 MHz |
| Passband Loss | 2.0 dB Max |
| VSWR (Max) | 1.2:1 |
| Passband Power (CW) | 10 Watts Max |
| Impedance | 50 ohms |
| Connectors | N-Female |
| Operating Temp | -10°C to +55°C |
| Mutual Isolation | 70 dB Approx |
