Furuno

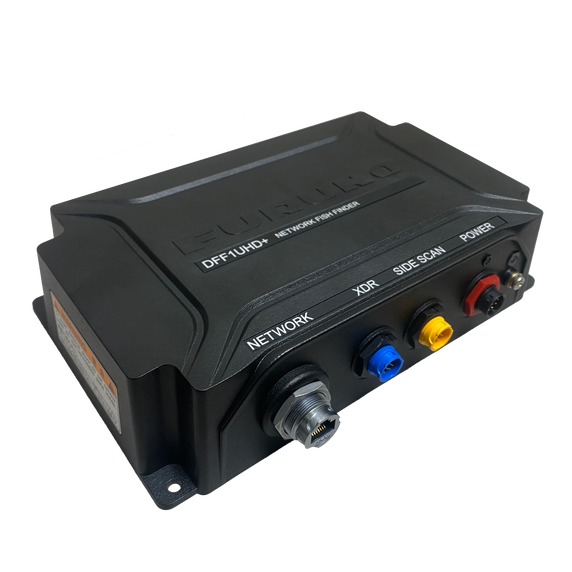

Furuno DFF1UHD+ Black Box TruEcho CHIRP with Side Scan
Product Code:
DFF1UHD+
Condition:
New
Weight:
1.00 KGS
Width:
24.10
(cm)
Height:
14.70
(cm)
Depth:
5.90
(cm)
$1,295.00

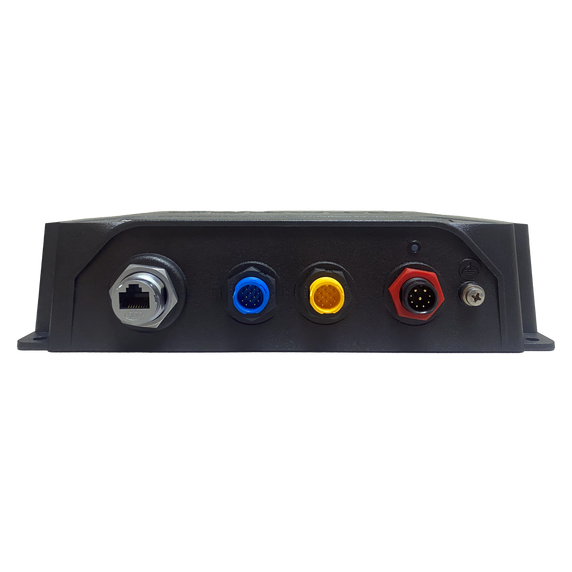

The DFF1UHD+ is a powerful multi-channel network Fish Finder designed for seamless integration with NavNet TZtouchXL, the perfect addition for helms featuring the TZT22X, TZT24X, or Black Box TZTBBX. The DFF1UHD+ combines up to 1 kW of CW and CHIRP Fish Finder power with 230 kHz or 455 kHz CHIRP Side-Scan in a single compact unit, delivering enhanced performance and versatility. Color-coded, waterproof connectors and a compact design allow for a simple installation.
Advanced Fish Finder Features
- Compatible with 300/600 W or 1 kW Transducer (Matching box MB1100 required for some CW transducers)
- Display Range from 6 to 4,000 feet
- Modes: ACCU-FISH™*, A-Scope, Manual Gain, Auto Gain (Fishing/Cruising), TruEcho CHIRP™, Bottom Discrimination (Compatible transducer required)
- 8-Step Picture Advance: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
- Fish Finder Alarms: Fish School, Fish School for bottom lock
CHIRP Side-Scan Features
- CHIRP at 230 kHz or 455 kHz center frequency
- Display range up to 750 feet to each side
- View CHIRP Side-Scan in full screen, 1/2 screen, 1/3 screen, 1/4 screen, and 1/6 screen
- Eight CHIRP Side-Scan display colors
| SPECIFICATIONS | |
| Display Size | Black Box |
| Display Type | Black Box |
| Frequency | CW 50-200 kHz and CHIRP 40-225 kHz and CHIRP Side-Scan 230 or 455 kHz |
| Power Usage | 12-24 VDC |
| Power Output | 150 W or 300 W or 600 W or 1 kW |
| Range | 4000 ft |
