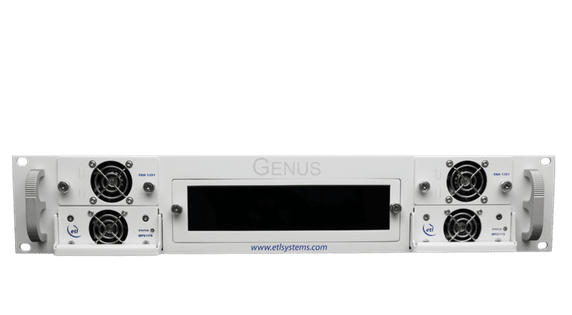

ETL Systems ALT-G2S-L1-130-XXXX Alto L-band Smart Amplifier Module
Product Code:
ALT-G2S-L1-130-XXXX
Condition:
New
Weight:
10.00 KGS
Width:
48.26
(cm)
Height:
8.89
(cm)
Depth:
55.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Alto L-band Smart Amplifier Module with low noise, high linearity, variable gain and slope control
L-band Smart high linearity amplifier designed to work in the Genus 2U chassis range operating over 850 to 2150MHz. The amplifier has three modes of operation:
- Power Mode - in this mode attenuation is adjusted at the input of the amplifier when gain is adjusted. This means that linearity is maintained, but noise figure increases as gain decreases.
- Noise Mode - in this mode attenuation is adjusted at the output of the amplifier when gain is adjusted. This means that noise figure is optimised, but linearity decreases as gain decreases.
- Compromise Mode - in this mode attenuation is applied equally at the input and the output of the amplifier when gain is adjusted. Neither linearity nor noise figure is favoured.
| Chassis Specification | |
| Dimensions/Weight/Colour | 2U high x 550mm deep x 19" wide / <10kg / RAL9003 - white (semi-matte) |
| Capacity | 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. |
| Temperature | Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C |
| Location/Humidity/Altitude | Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level |
| Control & Monitoring | Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. |
| MTTR | 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. |
| AC Input/Consumption | 85-264Vac 50/60Hz / 275W max. consumption at steady state |
| PSU Redundancy | Dual redundant and alarmed. Diode OR. Hot swappable. |
| Input & Output Ports | Dependant upon module fitted |
5 customers are viewing this product
Details
Alto L-band Smart Amplifier Module with low noise, high linearity, variable gain and slope control
L-band Smart high linearity amplifier designed to work in the Genus 2U chassis range operating over 850 to 2150MHz. The amplifier has three modes of operation:
- Power Mode - in this mode attenuation is adjusted at the input of the amplifier when gain is adjusted. This means that linearity is maintained, but noise figure increases as gain decreases.
- Noise Mode - in this mode attenuation is adjusted at the output of the amplifier when gain is adjusted. This means that noise figure is optimised, but linearity decreases as gain decreases.
- Compromise Mode - in this mode attenuation is applied equally at the input and the output of the amplifier when gain is adjusted. Neither linearity nor noise figure is favoured.
| Chassis Specification | |
| Dimensions/Weight/Colour | 2U high x 550mm deep x 19" wide / <10kg / RAL9003 - white (semi-matte) |
| Capacity | 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. |
| Temperature | Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C |
| Location/Humidity/Altitude | Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level |
| Control & Monitoring | Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. |
| MTTR | 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. |
| AC Input/Consumption | 85-264Vac 50/60Hz / 275W max. consumption at steady state |
| PSU Redundancy | Dual redundant and alarmed. Diode OR. Hot swappable. |
| Input & Output Ports | Dependant upon module fitted |
