ETL Systems

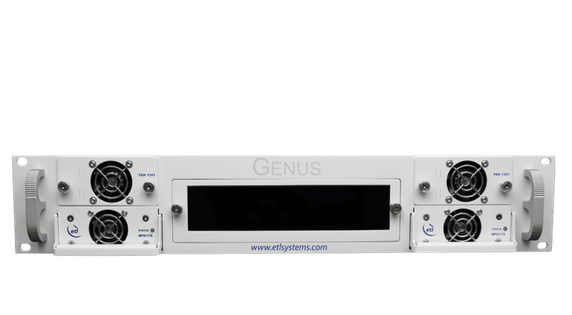

ETL Systems ALT-G2A-L1-250-XXXX Alto L-band AGC Amplifier Module
Product Code:
ALT-G2A-L1-250-XXXX
Condition:
New
Weight:
10.00 KGS
Width:
48.26
(cm)
Height:
8.89
(cm)
Depth:
55.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Alto L-band AGC Amplifier Module with low noise, high linearity, variable gain and slope control
L-band Automatic Gain Control (AGC) amplifier module. Designed to be housed in Genus 2U 19" chassis. It operates over 850-2150 MHz in either AGC mode, where it automatically controls its own gain to maintain a user-set output level while the input level varies, or in manual mode where the user may set the gain directly. Positive slope compensation between 0dB (flat response) and +6dB, as well as the attack & decay times for the AGC function are factory settable.
| Chassis Specification | |
| Dimensions/Weight/Colour | 2U high x 550mm deep x 19" wide / <10kg / RAL9003 - white (semi-matte) |
| Capacity | 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. |
| Temperature | Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C |
| Location/Humidity/Altitude | Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level |
| Control & Monitoring | Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. |
| MTTR | 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. |
| AC Input/Consumption | 85-264Vac 50/60Hz / 275W max. consumption at steady state |
| PSU Redundancy | Dual redundant and alarmed. Diode OR. Hot swappable. |
| Input & Output Ports | Dependant upon module fitted |
5 customers are viewing this product
Details
Alto L-band AGC Amplifier Module with low noise, high linearity, variable gain and slope control
L-band Automatic Gain Control (AGC) amplifier module. Designed to be housed in Genus 2U 19" chassis. It operates over 850-2150 MHz in either AGC mode, where it automatically controls its own gain to maintain a user-set output level while the input level varies, or in manual mode where the user may set the gain directly. Positive slope compensation between 0dB (flat response) and +6dB, as well as the attack & decay times for the AGC function are factory settable.
| Chassis Specification | |
| Dimensions/Weight/Colour | 2U high x 550mm deep x 19" wide / <10kg / RAL9003 - white (semi-matte) |
| Capacity | 17 module slots. Note: Actual modules may require >1 slot. Refer to required module spec table. |
| Temperature | Operating: 0˚C to +45˚C Storage: -20˚C to +75˚C |
| Location/Humidity/Altitude | Indoor use only / 20 to 90% non-condensing / 2,000m AMSL (Operational) 8,000m AMSL (Storage) Above Mean Sea Level |
| Control & Monitoring | Local: HMI, capacitive touch screen Remote: Ethernet via RJ45, 10BaseT/100 BaseTx. ETL TCP/IP, SNMPv2/3, HTTPS & built-in web server. HMI and CPU field replaceable. |
| MTTR | 20 minutes (15 minutes to retrieve spare part and 5 mins to replace). Applies to LRUs only and assumed in-house stock. |
| AC Input/Consumption | 85-264Vac 50/60Hz / 275W max. consumption at steady state |
| PSU Redundancy | Dual redundant and alarmed. Diode OR. Hot swappable. |
| Input & Output Ports | Dependant upon module fitted |
