ETI

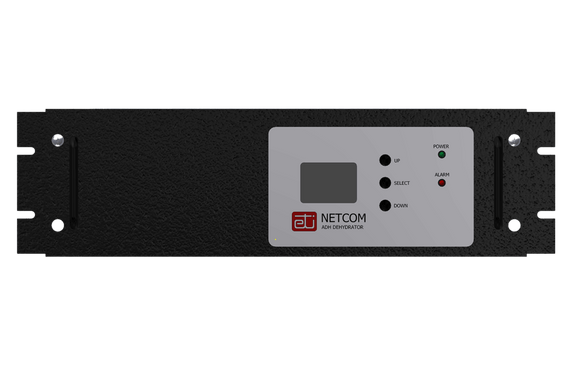

ETI ADH NETCOM Automatic Waveguide Dehydrator
Product Code:
ADH-NETCOM
Condition:
New
Weight:
7.26 KGS
Width:
43.20
(cm)
Height:
13.30
(cm)
Depth:
31.12
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The ADH NETCOM automatic waveguide dehydrator supplies low pressure dry air to keep waveguide and coaxial cable dry. Output pressure is configurable between 0.3 psig and 7.50 psig (20.68mbar – 517mbar) in 0.01 psig (0.67mbar) increments. Factory default pressure is 0.5 psig (34.5mbar). Operational monitoring and alarms are software based making them highly configurable in the field. Future software features can be installed while in service over the internet or local Ethernet network.
FEATURES
- Provides dry pressurized air to ensure signal quality of antenna waveguide and dielectric coaxial cable
- Highly configurable to meet the needs of wide ranging applications
- Programmable operating pressure range: 0.30 psig – 7.50 psig (20.68mbar – 517mbar)
- Brushless compressor for long life
- Future-proof software based features allow updates and upgrades while in service
- Remote monitoring and control with web interface or SNMP
- Configurable Master/Slave operation
- Ethernet, RS-422/485, RS-232 and alarm relay outputs for compatibility with nearly any system
- Front panel display allows for IP configuration and status monitoring when no network is available
- Simple power connections between 100 and 240 VAC, inclusive, or ±20-75 VDC
- Small, light weight chassis with multiple mounting options makes installation easy
- Low energy use minimizes operational costs
- Quiet operation
5 customers are viewing this product
Details
The ADH NETCOM automatic waveguide dehydrator supplies low pressure dry air to keep waveguide and coaxial cable dry. Output pressure is configurable between 0.3 psig and 7.50 psig (20.68mbar – 517mbar) in 0.01 psig (0.67mbar) increments. Factory default pressure is 0.5 psig (34.5mbar). Operational monitoring and alarms are software based making them highly configurable in the field. Future software features can be installed while in service over the internet or local Ethernet network.
FEATURES
- Provides dry pressurized air to ensure signal quality of antenna waveguide and dielectric coaxial cable
- Highly configurable to meet the needs of wide ranging applications
- Programmable operating pressure range: 0.30 psig – 7.50 psig (20.68mbar – 517mbar)
- Brushless compressor for long life
- Future-proof software based features allow updates and upgrades while in service
- Remote monitoring and control with web interface or SNMP
- Configurable Master/Slave operation
- Ethernet, RS-422/485, RS-232 and alarm relay outputs for compatibility with nearly any system
- Front panel display allows for IP configuration and status monitoring when no network is available
- Simple power connections between 100 and 240 VAC, inclusive, or ±20-75 VDC
- Small, light weight chassis with multiple mounting options makes installation easy
- Low energy use minimizes operational costs
- Quiet operation
Download
| Download Name | |
| ETI ADH NETCOM Datasheet | |
| ETI ADH NETCOM Manual | |
