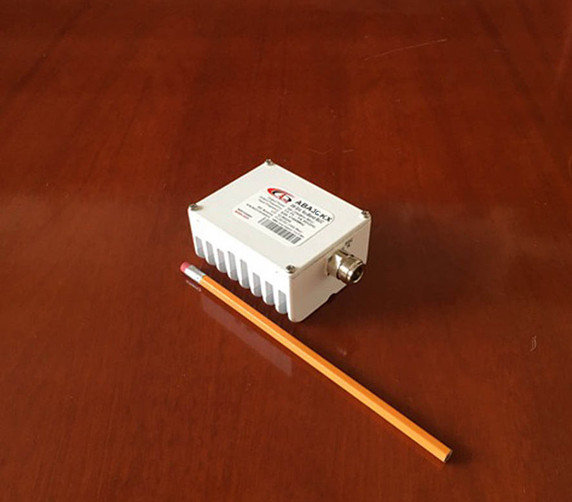

Actox ABA0KX 0W Ext. Mini Full Ku-Band Block Up Converter
Product Code:
ABA0KX
Weight:
0.45 KGS
Width:
10.05
(cm)
Height:
4.60
(cm)
Depth:
6.80
(cm)
$378.00
Actox ABA0KX 0W Ext. Mini Full Ku-Band Block Up Converter (modification of 2W ABA2KX)
This smallest and lightest 0W L-To Ku-Band Block Up Converter covers Full 13.75 to 14.75 GHz frequency band. Incomparable low power consumption (< 1 amp) allows to use the BUC with any modem without an external power
supply. The unit is ideal for portable and mobile aplications.
This unit features:
- Output frequency 13.75-14.50 GHz
- Based on GaN technology which enables high efficiency, low energy consumption and high reliability
- Smallest package size and weight
- Industry’s lowest power consumption (<14W)
- L.O. 12.80 GHz
- High power efficiency
- RoHS compliant
|
Model |
RF Frequency |
Local Frequency |
IF Frequency |
Output Power |
Connector |
|
ABA0KX |
13.75 to 14.50 GHz |
12.80 GHz |
950 to 1,700 MHz |
0W (+33 dBm min.) |
N-type |
|
ABA0KXF |
13.75 to 14.50 GHz |
12.80 GHz |
950 to 1,700 MHz |
0W (+33 dBm min.) |
F-type |
| Parameter | Value |
| Output interface | Waveguide, WR-75 G |
| Output power | +33 dBm minimum over temperature |
| Conversion gain | 60 dB nom. |
| External reference required frequency | 10 MHz (sine-wave) |
| External reference input power | -5 to +5 dBm @ input port |
| Phase noise (Exceeds Intelsat’s standard IESS308/309) | -53 dBc/Hz max. @ 10 Hz -63 dBc/Hz max. @ 100 Hz -73 dBc/Hz max. @ 1 KHz -83 dBc/Hz max. @ 10 KHz -93 dBc/Hz max. @ 100 KHz -110 dBc/Hz max. @ 1 MHz |
| Input V.S.W.R. | 2:1 max |
| Output V.S.W.R. | 2:1 max |
| DC power requirement | +15 to +24 V |
| Mute | Shut off the BUC if LO unlocked |
| Input interface | N-type, female (50 Ohm) |
| F-type, female (75 Ohm) | |
| Power consumption | 14W max. |
| Operating temperature | -40 to +55 degrees C |
| Storage temperature | -55 to +85 degrees C |
| Vibration & shock | Complies with MIL-STD-810E |
| Size (mm) | 100.5 (L) x 68 (W) x 46 (H) |
| Weight (kg) | 0.45 (0.99lbs) (max.) |
