Wilson Electronics

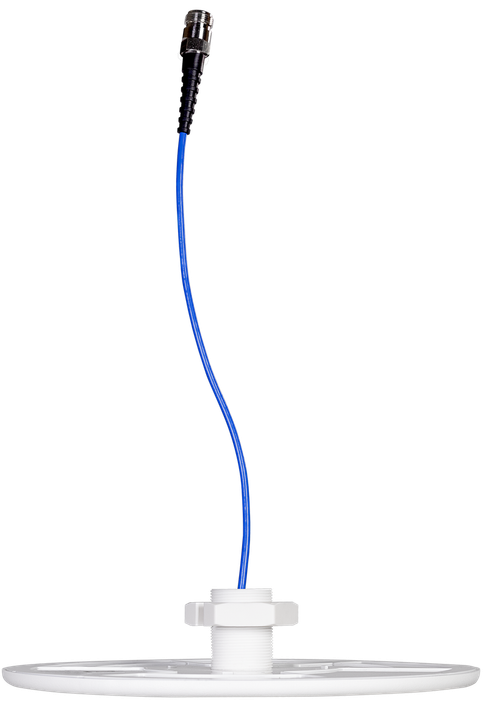

Wilson Electronics 14453918 Ultra Low Profile Dome Antenna
Product Code:
14453918
Manufacturer Part Number (MPN):
310005
UPC:
810005965323
Condition:
New
Weight:
0.40 KGS
Width:
26.50
(cm)
Height:
9.00
(cm)
Depth:
26.50
(cm)
$109.99
The Wilson Ultra Low Profile Dome Antenna is designed for clean indoor installs where appearance and performance both matter. It mounts directly to a ceiling and delivers broad, reliable signal coverage across a wide range of wireless bands.
Covering everything from 617 MHz to 6 GHz, this antenna supports all major cellular networks, plus WiFi, CBRS, and 5G. It’s built for commercial booster systems and distributed antenna setups, but it's also a strong fit for advanced residential installs where ceiling-mounted gear is preferred.
With its slim profile and white ABS housing, the antenna blends into most ceilings without drawing attention. It includes a plenum-rated pigtail and locking nut for secure, code-friendly installation in drywall or ceiling tile. The N-Female connector makes it easy to integrate with standard 50-ohm systems.
This antenna is a practical choice for installers working in offices, schools, warehouses, or any space where wide coverage and subtle design are key. It handles high-band and low-band signals alike, with solid performance across the board.
Features:
- Ultra-thin
- White radome
- RoHS Compliant
- N-female connector
- Plenum Rated pig-tail cable
- High efficiency and compact design
- Covers cellular bands and WiFi from 600 through 6000 MHz
Kit Includes 310005 Indoor Low-Profile Ceiling Antenna with Mounting Nut.
| ELECTRICAL SPECIFICATIONS | |||||
| Frequency Band (MHz) | 617-698 | 698-960 | 1695-2700 | 3300-4200 | 4800-6000 |
| Polarization | Linear, Horizontal | ||||
| Typical Gain (dBi) | 4 | 4 | 5 | 6 | 7 |
| Horizontal Beam Width (°) | 360, Omni-Directional | ||||
| Typical Vertical Beam Width (°) | 70 | 68 | 50 | 60 | 30 |
| Impedance (Ω) | 50 | ||||
| VSWR | ≤2.0 | ≤1.5 | |||
| Maximum Power (W) | 50 | ||||
