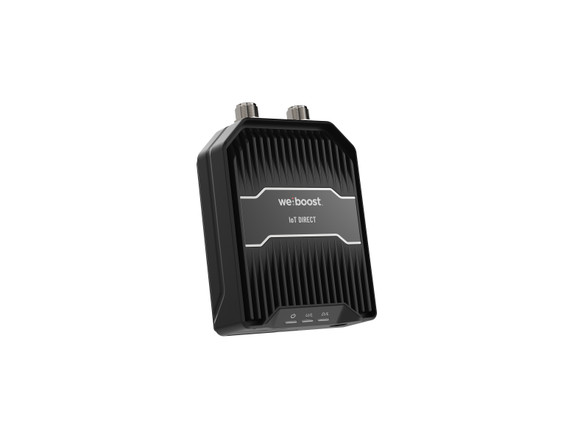

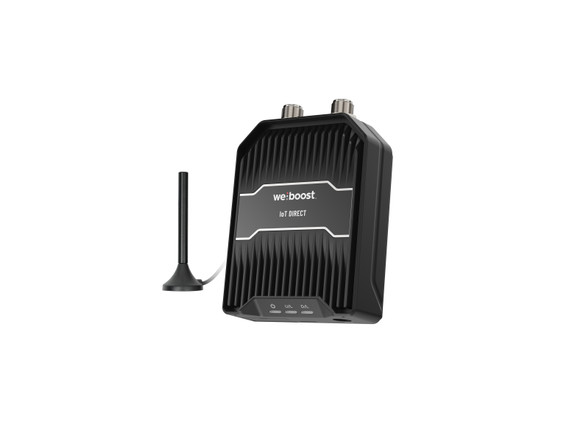

weBoost 475079 IoT Direct Cell Signal Booster Kit 4G LTE, 15 dB Gain
Product Code:
475079
Manufacturer Part Number (MPN):
475079
UPC:
810005966498
Weight:
1.26 KGS
Width:
19.68
(cm)
Height:
6.99
(cm)
Depth:
20.96
(cm)
$399.99
Key Specifications
| Model Number | 460079 |
| Frequencies | Band 12/17: 700 MHz Band 13: 700 MHz Band 5: 850 MHz Band 4: 1700/2100 MHz Band 25/2: 1900 MHz |
| Max Gain | 15 dB |
| Max Uplink Power | 24 dB |
| Max Downlink Power | -5 dB |
| Impedance | 50 Ohm |
| Power | 12V 2A |
| Connectors | N-Female |
| Booster Dimensions | 5.4 x 4.2 x 1.4 in. |
| Booster Weight | 1.58 lbs |
Additional Specifications
| FCC ID | PWO079 |
| Package Dimensions | 8.25 x 7.75 x 2.75 in. |
| Package Weight | 2.78 lbs |
| Warranty | 3-Year Warranty from Purchase. |
Features
- Designed to link with a data modem as a direct-connect
- Improves overall cellular connectivity in weak signal envir
- Configurable to almost any Internet of Things (IoT) install
- Pre-approved by all major cell carriers under FCC “part 2
- Passive RF bypass failover keeps modem going if power
- Auto-power control to help ensure maximum signal outpu

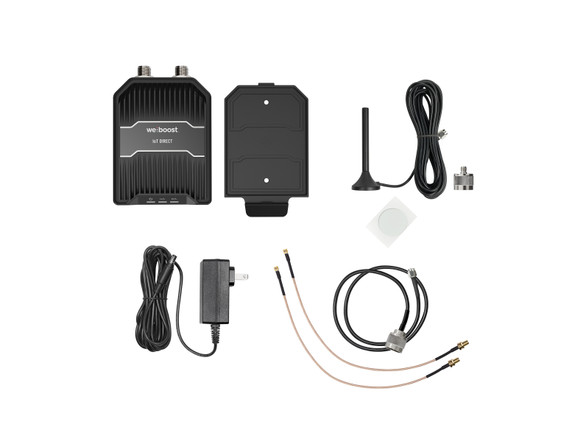

What's in the Box
- IoT Direct Amplifier & Wall Mount Bracket (460079)
- Mini Mag Antenna, N Male to SMA Female Adapter & Adhesive Pad (301126, 972000)
- 2 ft. SMA to N Male Cable, 1 ft. SMA to MMCX Cable & 1 ft. SMA to MCX Cable (295802, 953012, 953013)
- 12V AC/DC Power (PWR000048)
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
5 customers are viewing this product
Details
Key Specifications
| Model Number | 460079 |
| Frequencies | Band 12/17: 700 MHz Band 13: 700 MHz Band 5: 850 MHz Band 4: 1700/2100 MHz Band 25/2: 1900 MHz |
| Max Gain | 15 dB |
| Max Uplink Power | 24 dB |
| Max Downlink Power | -5 dB |
| Impedance | 50 Ohm |
| Power | 12V 2A |
| Connectors | N-Female |
| Booster Dimensions | 5.4 x 4.2 x 1.4 in. |
| Booster Weight | 1.58 lbs |
Additional Specifications
| FCC ID | PWO079 |
| Package Dimensions | 8.25 x 7.75 x 2.75 in. |
| Package Weight | 2.78 lbs |
| Warranty | 3-Year Warranty from Purchase. |
Features
- Designed to link with a data modem as a direct-connect
- Improves overall cellular connectivity in weak signal envir
- Configurable to almost any Internet of Things (IoT) install
- Pre-approved by all major cell carriers under FCC “part 2
- Passive RF bypass failover keeps modem going if power
- Auto-power control to help ensure maximum signal outpu
What's in the Box
- IoT Direct Amplifier & Wall Mount Bracket (460079)
- Mini Mag Antenna, N Male to SMA Female Adapter & Adhesive Pad (301126, 972000)
- 2 ft. SMA to N Male Cable, 1 ft. SMA to MMCX Cable & 1 ft. SMA to MCX Cable (295802, 953012, 953013)
- 12V AC/DC Power (PWR000048)
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty Information
3-Year Warranty from Purchase.
