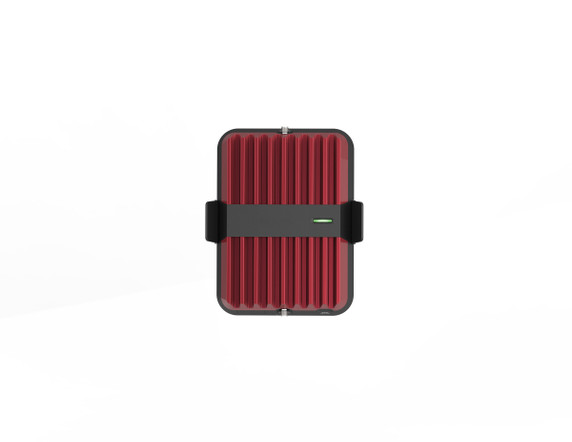

weBoost 4730061 Drive Reach Overland Extended Cell Signal Booster Kit 5G/4G LTE, 50 dB Gain
Product Code:
4730061
Manufacturer Part Number (MPN):
4730061
UPC:
810005966603
Weight:
3.23 KGS
Width:
34.29
(cm)
Height:
10.16
(cm)
Depth:
46.36
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Key Specifications
| Model Number | 474061 |
| Frequencies | Band 12/17: 700 MHz Band 13: 700 MHz Band 5: 850 MHz Band 4: 1700/2100 MHz Band 25/2: 1900 MHz |
| Max Gain | 50 dB |
| Impedance | 50 Ohm |
| Power | 12V, 1.8A |
| Connectors | SMA Female |
| Booster Dimensions | 6 x 4.5 x 1.5 in. |
| Booster Weight | 1.8 lbs |
Additional Specifications
| Uplink Output | 26.9 dBm |
| Downlink Output | 12 dBm |
| FCC ID | PWO460061 |
| Package Dimensions | 18.25 x 13.5 x 4 in. |
| Package Weight | 7.12 lbs |
| Warranty | 2-Year Warranty from Purchase. |
Features
- Versatile Installation: Multiple outside antenna mounting options: fixed, pole/ladder, and T-track; with adjustable mounting bracket.
- Rugged, weather-resistant outside antenna; IP66-rated for dust and water protection; tested to military standards for shock and vibration resistance.
- Strongest Mini In-Vehicle Low Profile Antenna
- Extended 18 foot cable (4 additional feet over standard kit) for easier installation in larger vehicles.
- Includes DC/DC power supply and 12V hardwire configurations.

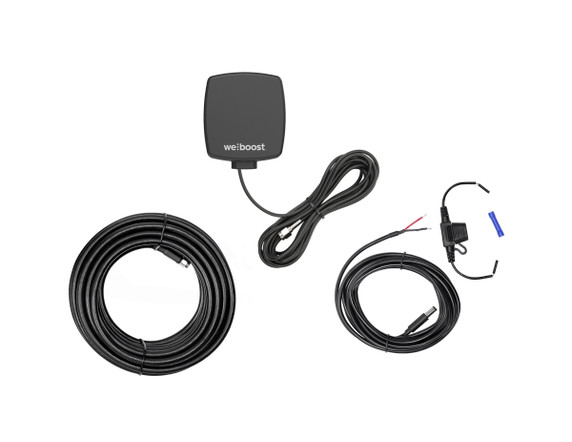

What's in the Box
- Drive Reach Signal Booster, Bracket, Power Supply & Hardwire Power Supply with In-line Fuse Holder
- Inside Antenna
- Outside Antenna, 18 ft. Cable & Heat Shrink Tubes
- 13 in. Mast Ext., Side-Exit Adapter, Spring & Thread Lock Pack
- Overland Mounting Bracket & Mounting Hardware
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
5 customers are viewing this product
Details
Key Specifications
| Model Number | 474061 |
| Frequencies | Band 12/17: 700 MHz Band 13: 700 MHz Band 5: 850 MHz Band 4: 1700/2100 MHz Band 25/2: 1900 MHz |
| Max Gain | 50 dB |
| Impedance | 50 Ohm |
| Power | 12V, 1.8A |
| Connectors | SMA Female |
| Booster Dimensions | 6 x 4.5 x 1.5 in. |
| Booster Weight | 1.8 lbs |
Additional Specifications
| Uplink Output | 26.9 dBm |
| Downlink Output | 12 dBm |
| FCC ID | PWO460061 |
| Package Dimensions | 18.25 x 13.5 x 4 in. |
| Package Weight | 7.12 lbs |
| Warranty | 2-Year Warranty from Purchase. |
Features
- Versatile Installation: Multiple outside antenna mounting options: fixed, pole/ladder, and T-track; with adjustable mounting bracket.
- Rugged, weather-resistant outside antenna; IP66-rated for dust and water protection; tested to military standards for shock and vibration resistance.
- Strongest Mini In-Vehicle Low Profile Antenna
- Extended 18 foot cable (4 additional feet over standard kit) for easier installation in larger vehicles.
- Includes DC/DC power supply and 12V hardwire configurations.
What's in the Box
- Drive Reach Signal Booster, Bracket, Power Supply & Hardwire Power Supply with In-line Fuse Holder
- Inside Antenna
- Outside Antenna, 18 ft. Cable & Heat Shrink Tubes
- 13 in. Mast Ext., Side-Exit Adapter, Spring & Thread Lock Pack
- Overland Mounting Bracket & Mounting Hardware
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty Information
2-Year Warranty from Purchase.
