weBoost
weBoost 472060 Office 100 Cell Signal Booster Kit 5G/4G LTE, 72 dB Gain, 50 Ohm
Product Code:
472060
Manufacturer Part Number (MPN):
472060
UPC:
810005963107
Weight:
7.26 KGS
Width:
33.02
(cm)
Height:
38.10
(cm)
Depth:
33.02
(cm)
$1,299.99
Key Specifications
| SKU Number | 472060 |
| Frequencies | Band 12/17: 700 MHz Band 13: 700 MHz Band 5: 850 MHz Band 4: 1700/2100 MHz Band 25/2: 1900 MHz |
| Max Gain | 72 dB |
| Max Uplink Power | 24 dBm |
| Max Downlink Power | 12 dBm |
| Impedance | 50 Ohm |
| Power | 110-240V AC, 50-60 Hz, 20 W |
| Connectors | N-Female |
| Booster Dimensions | 6 x 6 x 1.8 in |
| Booster Weight | 1.9 lbs |
Additional Specifications
| FCC ID | PWO460060 |
| Package Dimensions | 13 x 13 x 15 in. |
| Package Weight | 16 lbs |
| Warranty | 3-Year Warranty from Purchase. |
Features
- Ideal amplifier system for small businesses and warehouse
- Covers up to 8,000 square feet
- Includes LED indicators
- Is FCC approved and works on all U.S. carrier networks, inc Verizon, AT&T, T-Mobile, UScellular, and more

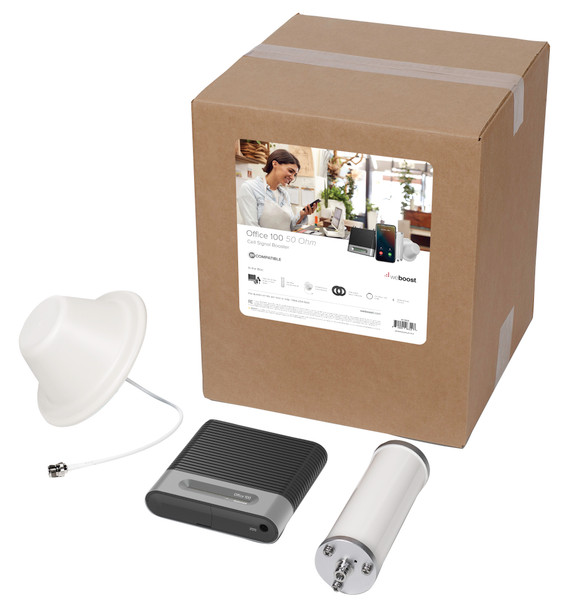

What's in the Box
- Office 100 Amplifier
- Omni Plus Antenna 314422
- Inside Dome Antenna 304412
- Lightning Surge Protector 859902
- 2ft Low-Loss Wilson400 Cable 952302
- 60ft Low-Loss Wilson400 Cable 952360
- 75ft Low-Loss Wilson400 Cable 952375
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
5 customers are viewing this product
Details
Key Specifications
| SKU Number | 472060 |
| Frequencies | Band 12/17: 700 MHz Band 13: 700 MHz Band 5: 850 MHz Band 4: 1700/2100 MHz Band 25/2: 1900 MHz |
| Max Gain | 72 dB |
| Max Uplink Power | 24 dBm |
| Max Downlink Power | 12 dBm |
| Impedance | 50 Ohm |
| Power | 110-240V AC, 50-60 Hz, 20 W |
| Connectors | N-Female |
| Booster Dimensions | 6 x 6 x 1.8 in |
| Booster Weight | 1.9 lbs |
Additional Specifications
| FCC ID | PWO460060 |
| Package Dimensions | 13 x 13 x 15 in. |
| Package Weight | 16 lbs |
| Warranty | 3-Year Warranty from Purchase. |
Features
- Ideal amplifier system for small businesses and warehouse
- Covers up to 8,000 square feet
- Includes LED indicators
- Is FCC approved and works on all U.S. carrier networks, inc Verizon, AT&T, T-Mobile, UScellular, and more
What's in the Box
- Office 100 Amplifier
- Omni Plus Antenna 314422
- Inside Dome Antenna 304412
- Lightning Surge Protector 859902
- 2ft Low-Loss Wilson400 Cable 952302
- 60ft Low-Loss Wilson400 Cable 952360
- 75ft Low-Loss Wilson400 Cable 952375
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty Information
3-Year Warranty from Purchase.
Download
| Download Name | |
| weBoost Office 100 472060 datasheet | |
