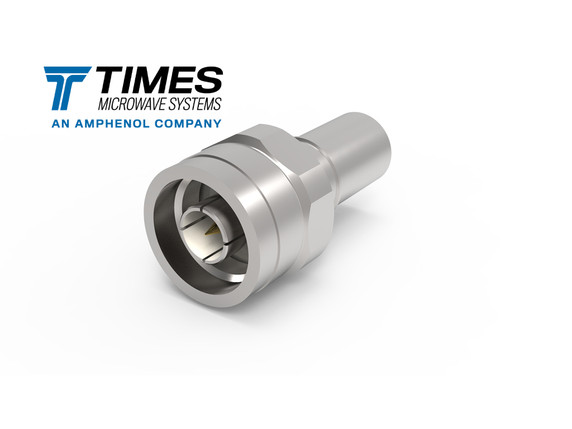

Times Microwave Systems EZ-400-NMH-X N-Male Straight Connector for LMR-400, 50 Ohm
Product Code:
EZ-400-NMH-X
Manufacturer Part Number (MPN):
EZ-400-NMH-X
Weight:
0.05 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
Key Specifications
| Part Number | EZ-400-NMH-X |
| Stock Code | 3190-2590 |
| Interface | N |
| Gender | Male (plug) |
| Orientation | Straight |
| PIM Rating | N/A |
| Impedance (ohms) | 50 |
| Max Frequency (GHz) | 6 |
| VSWR Freq | <1.30:1 |
| VSWR Frequency (GHz) | 10 |
| Coupling Nut | Hex/Knurl |
| Inner Contact Attach | Spring Finger |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
| Length (mm) | 38 |
| Length (in) | 1.5 |
| Width (mm) | 22.6 |
| Width (in) | 0.89 |
| Weight (g) | 46.8 |
| Weight (lb) | 0.1 |
Compatible Cables
| Cable | LMR-400, LMR-400-DB, LMR-400-FR, LMR-400-FR-PVC, LMR-400-RR-DB, TCOM-400, TCOM-400-FR, T-RAD-400-FR |
Overview
N male (plug) straight EZ connector for LMR®-400, TCOM®-400, and T-RAD®-400-FR type cables. The EZ-400-NMH-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination. The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high-vibration applications where the center conductor might contract. The Type N is a durable, weatherproof, medium-size RF connector designed for systems where excellent RF and mechanical performance is critical. They feature a threaded coupling mechanism and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. This is a male (plug), straight connector for 400-size cables.
