Teltonika Networks

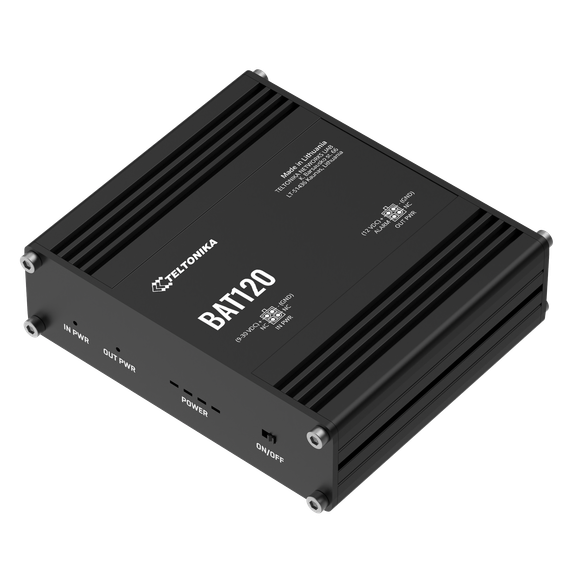

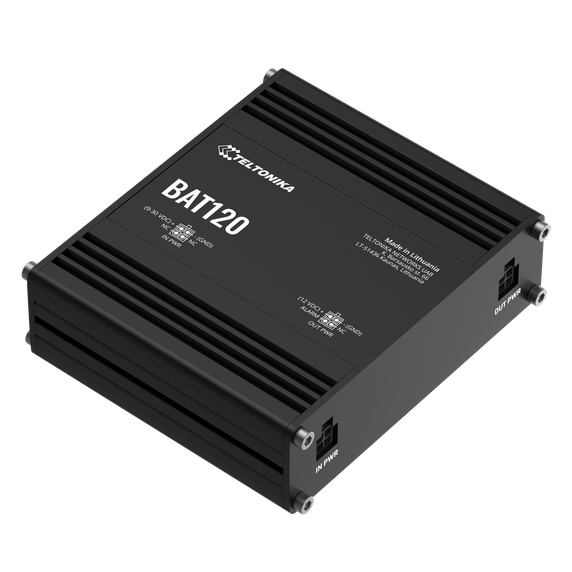

Teltonika Networks 14974129 BAT120 Uninterruptible Power Supply
Product Code:
14974129
Manufacturer Part Number (MPN):
BAT120000100
UPC:
4779027312910
Condition:
New
Weight:
0.55 KGS
Width:
17.30
(cm)
Height:
7.10
(cm)
Depth:
14.80
(cm)
$129.19
BAT120 is the first uninterrupted power supply from Teltonika Networks. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery. Acting as an uninterrupted power source, BAT120 provides enough power from two 18650 Li-Io cells to keep a compatible Teltonika Networks device working for up to 6 hours. BAT120 has reverse and overvoltage protection for input and 3A overcurrent protection for output as safety features. This rugged and reliable uninterrupted power source is perfect for applications that require constant connectivity from their Teltonika Networks devices even when power outages or fluctuations occur.
| Technical specifications | |
| Input voltage range | 9 – 30 VDC |
| Output voltage in passthrough mode | 9 – 30 VDC |
| Output voltage in battery mode | 12 VDC |
| Max output power/current in battery mode | 22 W/1.8 A |
| Battery capacity | 2600 mAh, 17 Wh |
| Working temperature | 0 ºC to 45 ºC |
| Bundled accessories specifications* | |
| Power adapter | Input: 0.8A@100-240 VAC, Output: 12 VDC, 2 A, 4-pin plug |
| Power cable | 4-pin to 4-pin power cable 4 x 0.2 mm2 (24 AWG) |
| * Order code dependant. | |
5 customers are viewing this product
Details
BAT120 is the first uninterrupted power supply from Teltonika Networks. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery. Acting as an uninterrupted power source, BAT120 provides enough power from two 18650 Li-Io cells to keep a compatible Teltonika Networks device working for up to 6 hours. BAT120 has reverse and overvoltage protection for input and 3A overcurrent protection for output as safety features. This rugged and reliable uninterrupted power source is perfect for applications that require constant connectivity from their Teltonika Networks devices even when power outages or fluctuations occur.
| Technical specifications | |
| Input voltage range | 9 – 30 VDC |
| Output voltage in passthrough mode | 9 – 30 VDC |
| Output voltage in battery mode | 12 VDC |
| Max output power/current in battery mode | 22 W/1.8 A |
| Battery capacity | 2600 mAh, 17 Wh |
| Working temperature | 0 ºC to 45 ºC |
| Bundled accessories specifications* | |
| Power adapter | Input: 0.8A@100-240 VAC, Output: 12 VDC, 2 A, 4-pin plug |
| Power cable | 4-pin to 4-pin power cable 4 x 0.2 mm2 (24 AWG) |
| * Order code dependant. | |
