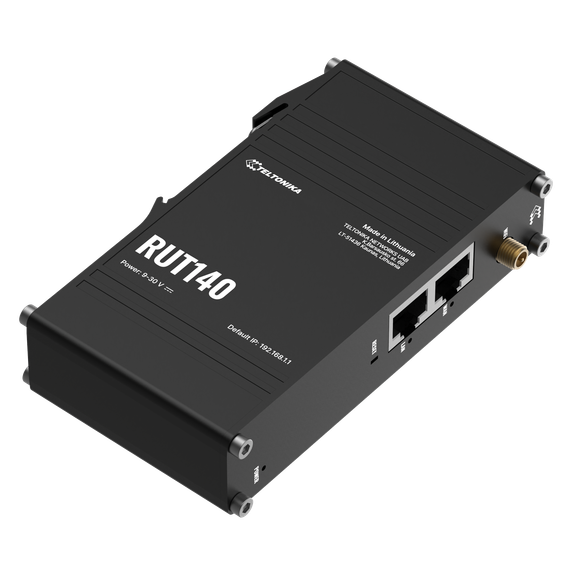

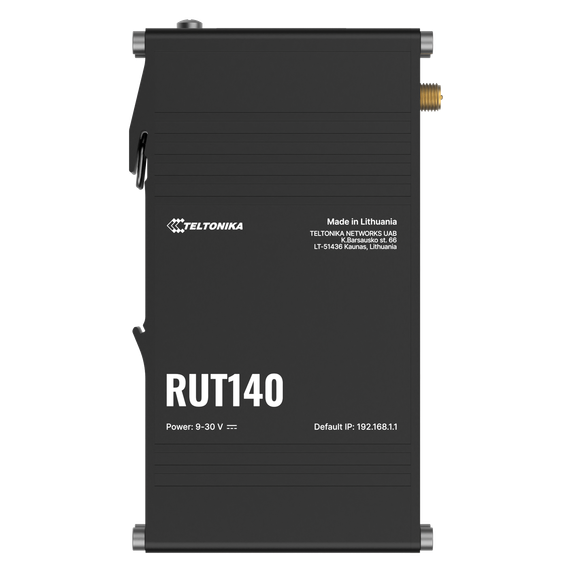

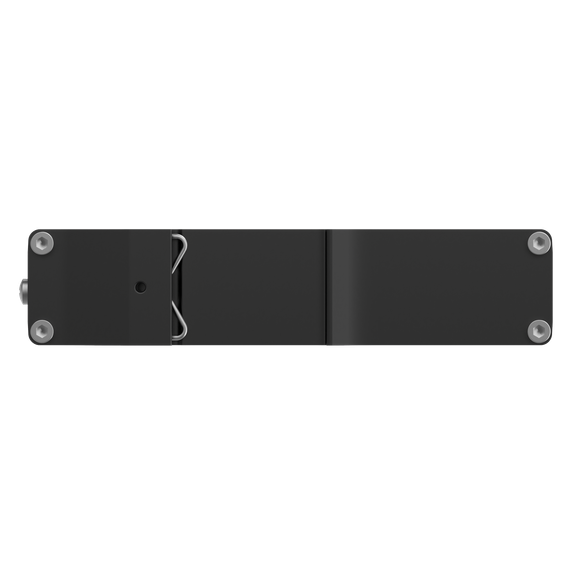

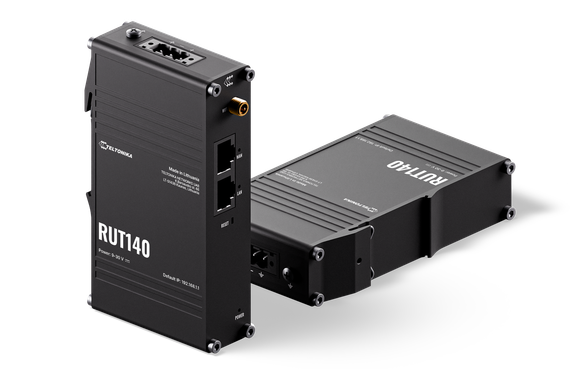

Teltonika Networks 14758044 RUT140 Ethernet Router
Product Code:
14758044
Manufacturer Part Number (MPN):
RUT140000000
UPC:
4779051840700
Condition:
New
Weight:
0.15 KGS
Width:
11.31
(cm)
Height:
2.50
(cm)
Depth:
6.86
(cm)
$75.00
The RUT140 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUT140 |
| Networking / Ports Qty: | 2 |
| Routing Protocol: | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Processor / Type: | MediaTek |
| RAM / Total Installed Size: | 128 MB |
| Flash Memory / Installed Size: | 16 MB |
| Power Consumption Operational: | 1 Watt |
| Power / Voltage Required: | 9-30 VDC |
| Interfaces: | 2 x RJ45 ports, 10/100 Mbps, 1 x 3-pin power connector, 1 x RP-SMA for Wi-Fi, 1 x Grounding screw |
| Antenna Type: | Antenna |
| Temperature Required: | -40 Celsius to 75 Celsius |
| Humidity Required: | 10% to 90% non-condensing |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | IEEE 802.11 b/g/n; Fast Ethernet |
| Transport Protocol: | NTP; UDP/IP; TCP/IP; PPP; ICMP/IP; PPPoE; FTP; SMTP; DHCP; DNS; ARP |
| Status Indicators: | 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED |
| Remote Management Protocol: | SNMP; SSH; Web |
| VoIP Supported: | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Dimensions&Miscellaneous | |
| Width: | 113.10 Mm |
| Depth: | 68.6 Mm |
| Height: | 25 Mm |
| Weight: | 142.3 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
5 customers are viewing this product
Details
The RUT140 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
| Specifications | |
| Primary Information | |
| Network Device Type: | Router |
| Model: | RUT140 |
| Networking / Ports Qty: | 2 |
| Routing Protocol: | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Processor / Type: | MediaTek |
| RAM / Total Installed Size: | 128 MB |
| Flash Memory / Installed Size: | 16 MB |
| Power Consumption Operational: | 1 Watt |
| Power / Voltage Required: | 9-30 VDC |
| Interfaces: | 2 x RJ45 ports, 10/100 Mbps, 1 x 3-pin power connector, 1 x RP-SMA for Wi-Fi, 1 x Grounding screw |
| Antenna Type: | Antenna |
| Temperature Required: | -40 Celsius to 75 Celsius |
| Humidity Required: | 10% to 90% non-condensing |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 100 Mbps |
| Data Link Protocol: | IEEE 802.11 b/g/n; Fast Ethernet |
| Transport Protocol: | NTP; UDP/IP; TCP/IP; PPP; ICMP/IP; PPPoE; FTP; SMTP; DHCP; DNS; ARP |
| Status Indicators: | 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED |
| Remote Management Protocol: | SNMP; SSH; Web |
| VoIP Supported: | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Dimensions&Miscellaneous | |
| Width: | 113.10 Mm |
| Depth: | 68.6 Mm |
| Height: | 25 Mm |
| Weight: | 142.3 g |
| Special Feature | |
| Min Operating Temperature: | -40 Celsius |
| Max Operating Temperature: | 75 Celsius |
| Humidity Range Operating: | 10% to 90% non-condensing |
| COO: | LITHUANIA |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
Download
| Download Name | |
| Teltonika Networks RUT140 Datasheet | |
