STX3 Development Kit with Bluetooth

With 60 days of pre-authorized satellite usage time, the STX3 Development Kit with BLE enables users to apply satellite technology during their product development cycle. The mobile app (compatible with Android and iOS) allows users to issue commands such as sending accelerometer data, humidity and/or temperature readings from onboard sensors. NOTE: The STX3 Dev Kit is for evaluation purposes only; it is not FCC approved for resale.

The STX3 Development Kit with BLE makes it simple to get set up and send custom, user-defined data over the Globalstar Satellite Network.

Key Features

Globalstar STX3 satellite modem

High performance BLE processor

2.4GHz Chip Antenna for Bluetooth

USB interface

Sensors: accelerometer, humidity, and temperature

Mobile App available for iOS and Android

Sample code and schematics available upon request

Interfaces: BLE, USB, UART

Analog Adjust potentiometer

User LEDs and buttons

Expansion header

Specifications

DIMENSIONS
​4.25” X 4.25” X 0.75”

OPERATING TEMPERATURE
0 to 50°C

SATELLITE TECHNOLOGY

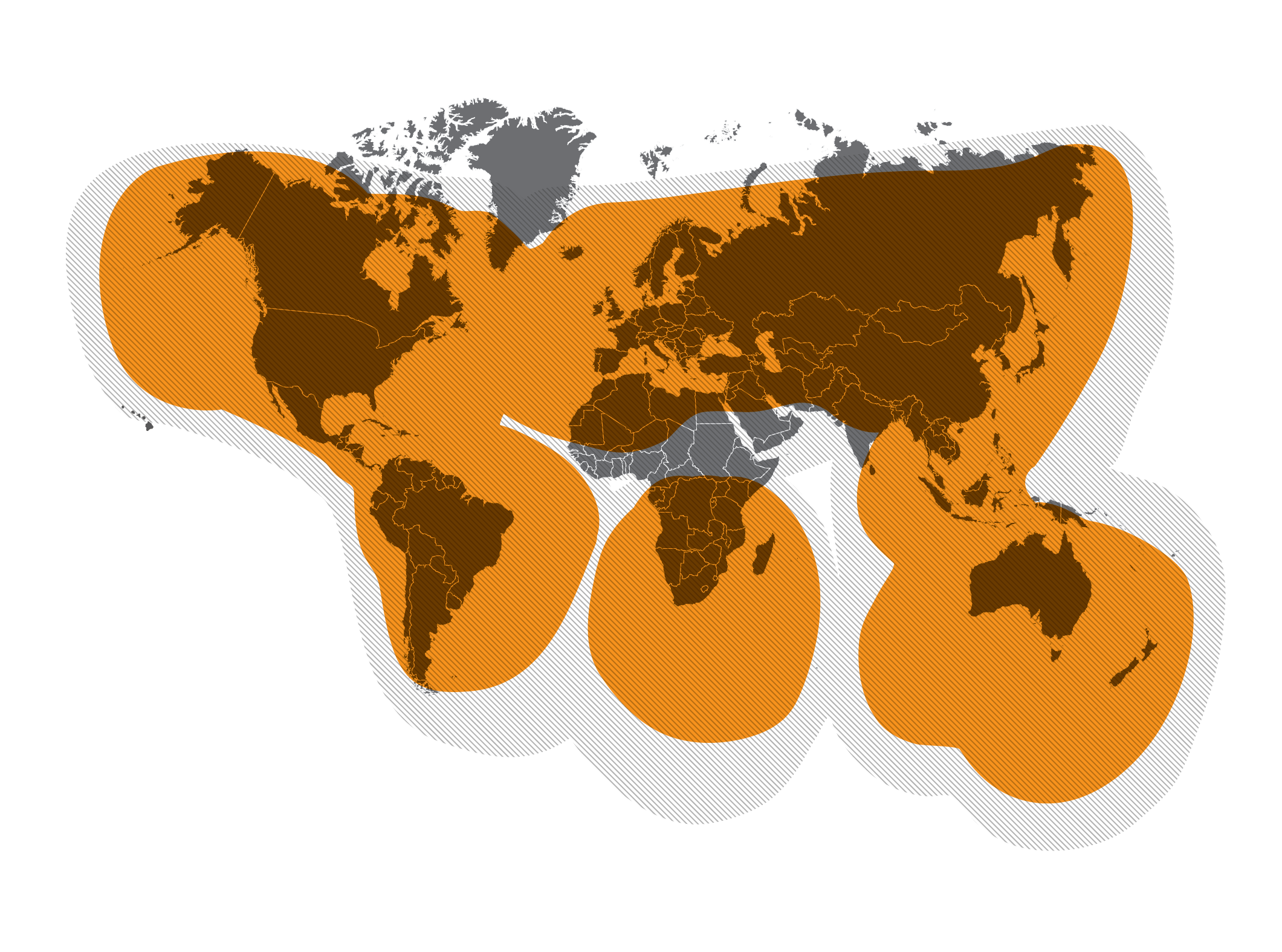

Operates over the Globalstar Satellite Network
