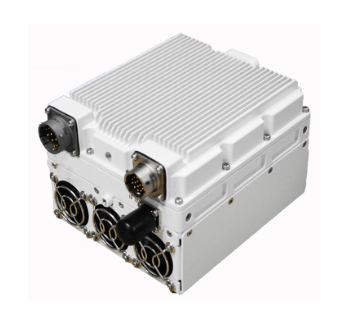

RevGo RGUC-U240-484E-C-F Block Up-Converter (BUC) Ku-Band 40W 13.75 - 14.5 GHz
Product Code:
RGUC-U240-484E-C-F
Condition:
New
Availability:
YES
Weight:
2.20 KGS
Width:
14.70
(cm)
Height:
9.80
(cm)
Depth:
13.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the CONVERTER
The RGUC–U is a high-performance Ku-Band Block Up-Converter delivering 40W of output power. Designed for satellite uplink applications, it offers compact form factor, efficient thermal management, and reliable performance in demanding environments. Typical VSAT applications include maritime, 5G backhaul, SNG vehicles, and fixed, portable, or transportable terminals.
Reliability
• Highly integrated RF technologies (RFIC and GaN)
• Designed for high volume production
• Linearity optimized for high order modulation and high data rate
• Strict quality control processes resulting in <0.25% field failure rates
Product Features
• Variable power consumption 250W (@46dBm) 200W (@45dBm)
• Equipment redundancy port and logic integrated
• Low phase noise (exceeds IESS308/309)
• Rugged design for extreme environments (-40 to +65o C)
Key Specifications
| Band | Ku-Band |
| Output Frequency | Ku-Band: 13.75 - 14.50 GHz |
| IF Connector | F-Connector |
RF Specifications
| RF Frequency | Extended: 13.75-14.50 GHz |
| IF Frequency | 950-1700 MHz |
| External Ref | 10 MHz, 0 ± 5 dBm |
| Output Power - Rated/Saturated | 46 dBm |
| Output Power - PLin1 | 45 dBm |
| Output Power - PLin2 | 44 dBm |
| Output Power - PLin3 | 43 dBm |
| IMD3 (3dB from rated) | - 25 dBc |
| Small Signal Gain | 70 dB |
| Gain Variation | 1 dB p-p / 36 MHz 3 dB p-p / 500 MHz 4 dB p-p / 750 MHz |
| Gain stability | 3 dB p-p |
| Gain Adjustment | 20 dB (Step: 0.1 dB) |
| Phase Noise | -63 dBc / Hz @ 100 Hz -73 dBc / Hz @ 1 KHz -83 dBc / Hz @ 10 KHz -93 dBc / Hz @ 100 KHz |
| Output Spurious | -55 dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Power Supply
| Input Power | +36 to +72 VDC |
| Power Consumption - @ PLin1 Output | 200W |
| Power Consumption - @ Rated Output | 250W |
Interfaces
| RF Output Connector | WR75-G (Grooved) |
| RF Output VSWR | 1.25:1 |
| IF Connector | F-Type |
| IF Input VSWR | 1.5:1 |
| Power and M&C Connector | PT02E-14-12P 4 pins for power supply |
| M&C Connector | 8 pins for M&C (RS485/Eth) SNMPv2 |
| Alarm Status Indicator | LED (green/red) |
Physical Parameters
| Size (inches) | 5.79*5.12*3.86 147*130*98 mm |
| Weight (lbs) | 4.85 2.2 kg |
| Operating Temperature | -40 to +60 °C (guarantee) |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
