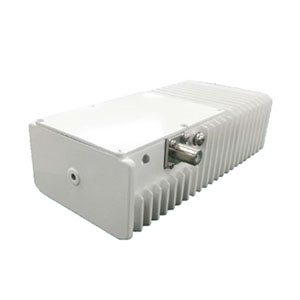

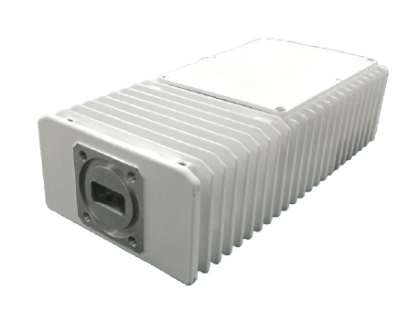

RevGo RGUC-U209-24NA-N Block Up-Converter (BUC) Ku-Band 6W IFL 13.75 - 14.5 GHz
Product Code:
RGUC-U209-24NA-N
Condition:
New
Availability:
YES
Weight:
1.10 KGS
Width:
17.30
(cm)
Height:
5.00
(cm)
Depth:
8.40
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the CONVERTER
The RGUC-U209-24NA-N is a RevGo RF unit operating in Ku-Band, with an output range of 13.75 - 14.50 GHz and an N-type IF interface. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ku-Band |
| Output Frequency | Ku-Band: 13.75 - 14.50 GHz |
| IF Connector | N-Connector |
RF Specifications
| RF Frequency | Extended: 13.75-14.50 GHz |
| IF Frequency | 950-1700 MHz |
| External Ref | 10 MHz, 0 ± 5 dBm |
| Output Power - Saturated | 38.3 dBm |
| Output Power - PLIN1 | 37.3 dBm |
| Output Power - PLIN2 | 36.3 dBm |
| Output Power - PLIN3 | 35.3 dBm |
| IMD3 (3dB from Psat) | - 24 dBc |
| Small Signal Gain | 64 dB |
| Gain Variation | 1 dB p-p / 36 MHz 3 dB p-p / 500 MHz 4 dB p-p / 750 MHz |
| Gain stability | 3 dB p-p |
| Phase Noise | -60 dBc / Hz @ 100 Hz -70 dBc / Hz @ 1 KHz -80 dBc / Hz @ 10 KHz -90 dBc / Hz @ 100 KHz |
| Output Spurious | -50 dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Power Supply
| Input Power | +18 to +36 vDC |
| Power Consumption - @ Rated Output | 40W |
Interfaces
| RF Output Connector | WR75-G (Grooved) |
| IF Connector | N-Type Female |
| RF Output VSWR | 2:1 |
| Power | IFL |
| Alarm Status Indicator | LED (green/red) |
Physical Parameters
| Size (inches) | 6.8*3.3*1.9 173*84*50 mm |
| Weight (lbs) | 2.4 1.1 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
