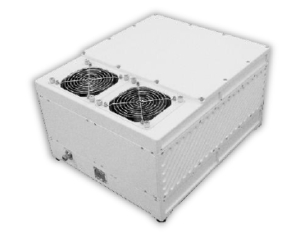

RevGo RGUC -U1500-ACRLN-CP Block Up-Converter (BUC) Ku-Band 500W 14.0 - 14.5 GHz, Internal
Product Code:
RGUC -U1500-ACRLN-CP
Condition:
New
Weight:
30.00 KGS
Width:
45.00
(cm)
Height:
24.20
(cm)
Depth:
38.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
About the CONVERTER
In the event of an equipment failure, the optional 1:1 redundancy kit switches traffic from the primary BUC to the standby BUC. 1:2 configuration is supported
Key Specifications
| Band | Ku-Band |
| Output Frequency | Ku-Band: 14.00 - 14.50 GHz |
| Output Power | 500W |
| Reference | Internal reference |
| OpenBmip | With openBmip calibration tables |
| Redundancy Kit | Optional 1:1 Redundancy Kit | Optional touch screen control panel (1U) - specify when ordering |
RF Specifications
| RF Frequency | Standard: 14.00-14.50 GHz |
| IF Frequency | 950-1450 MHz |
| LO Frequency | 13.05 GHz |
| External Ref | 10 MHz, 0 ± 5 dBm |
| Internal Ref (optional) - Oscillator accuracy | ±100 ppb typ. |
| Internal Ref (optional) - Oscillator stability | ± 5 ppb typ. |
| Output Power - Rated/Saturated | 57 dBm |
| Output Power - PLin1 | 56 dBm |
| Output Power - PLin2 | 55 dBm |
| Output Power - PLin | 54 dBm |
| IMD3 (@Prated-3dB) | - 25 dBc |
| Small Signal Gain | 80 dB |
| Gain Variation | 1 dB p-p / 36 MHz 3 dB p-p / 500 MHz 4 dB p-p / 750 MHz |
| Gain stability | 3 dB p-p |
| Gain Adjustment | 60-80dB (20 dB, Step by 0.1 dB) |
| TX noise density | -82 dBm/Hz |
| RX noise density | -156 dBm/Hz (10.7-12.75 GHz) |
| Phase Noise | -65 dBc / Hz @ 100 Hz -75 dBc / Hz @ 1 KHz -85 dBc / Hz @ 10 KHz -95 dBc / Hz @ 100 KHz |
| Output Spurious | -60 dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin : <-25 dBc IMD3 (MIL-STD-188-164B) |
Power Supply
| Input Power | 200 to 240 VAC (47-63 Hz) |
| @ PLin Output | 1700 W |
| @ Rated Output | 2800 W |
Interfaces
| RF Output Connector | WR75-G (Grooved) |
| RF Output VSWR | 1.25:1 |
| IF Connector | N-Type Female |
| IF Input VSWR | 1.5:1 |
| Power Connector | ACS02E-16-10P |
| M&C Connector | PT02E-14-19P (RS232/485) |
| Ethernet Connector | RJ45 (Ethernet, 100/1000 MHz) SNMPv2 |
| Link Connector | PT02E-12-14S |
| Switch Connector | PT02E-12-14P |
| Alarm Status Indicator | LED (green/red) |
Physical Parameters
| Size (inches) | 17.72x14.97x9.53 450x380x242 mm |
| Weight (lbs) | 66.13 30 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
5 customers are viewing this product
Details
About the CONVERTER
In the event of an equipment failure, the optional 1:1 redundancy kit switches traffic from the primary BUC to the standby BUC. 1:2 configuration is supported
Key Specifications
| Band | Ku-Band |
| Output Frequency | Ku-Band: 14.00 - 14.50 GHz |
| Output Power | 500W |
| Reference | Internal reference |
| OpenBmip | With openBmip calibration tables |
| Redundancy Kit | Optional 1:1 Redundancy Kit | Optional touch screen control panel (1U) - specify when ordering |
RF Specifications
| RF Frequency | Standard: 14.00-14.50 GHz |
| IF Frequency | 950-1450 MHz |
| LO Frequency | 13.05 GHz |
| External Ref | 10 MHz, 0 ± 5 dBm |
| Internal Ref (optional) - Oscillator accuracy | ±100 ppb typ. |
| Internal Ref (optional) - Oscillator stability | ± 5 ppb typ. |
| Output Power - Rated/Saturated | 57 dBm |
| Output Power - PLin1 | 56 dBm |
| Output Power - PLin2 | 55 dBm |
| Output Power - PLin | 54 dBm |
| IMD3 (@Prated-3dB) | - 25 dBc |
| Small Signal Gain | 80 dB |
| Gain Variation | 1 dB p-p / 36 MHz 3 dB p-p / 500 MHz 4 dB p-p / 750 MHz |
| Gain stability | 3 dB p-p |
| Gain Adjustment | 60-80dB (20 dB, Step by 0.1 dB) |
| TX noise density | -82 dBm/Hz |
| RX noise density | -156 dBm/Hz (10.7-12.75 GHz) |
| Phase Noise | -65 dBc / Hz @ 100 Hz -75 dBc / Hz @ 1 KHz -85 dBc / Hz @ 10 KHz -95 dBc / Hz @ 100 KHz |
| Output Spurious | -60 dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin : <-25 dBc IMD3 (MIL-STD-188-164B) |
Power Supply
| Input Power | 200 to 240 VAC (47-63 Hz) |
| @ PLin Output | 1700 W |
| @ Rated Output | 2800 W |
Interfaces
| RF Output Connector | WR75-G (Grooved) |
| RF Output VSWR | 1.25:1 |
| IF Connector | N-Type Female |
| IF Input VSWR | 1.5:1 |
| Power Connector | ACS02E-16-10P |
| M&C Connector | PT02E-14-19P (RS232/485) |
| Ethernet Connector | RJ45 (Ethernet, 100/1000 MHz) SNMPv2 |
| Link Connector | PT02E-12-14S |
| Switch Connector | PT02E-12-14P |
| Alarm Status Indicator | LED (green/red) |
Physical Parameters
| Size (inches) | 17.72x14.97x9.53 450x380x242 mm |
| Weight (lbs) | 66.13 30 kg |
| Operating Temperature | -40 to +60 °C |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
