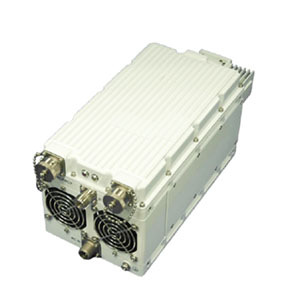

RevGo RGUC-U1100-ACRE-C Block Up-Converter (BUC) Ku-Band 100W 14.0 - 14.5 GHz
Product Code:
RGUC-U1100-ACRE-C
Condition:
New
Availability:
YES
Weight:
5.70 KGS
Width:
24.60
(cm)
Height:
13.60
(cm)
Depth:
13.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
About the CONVERTER
The RGUC-U1100-ACRE-C is a RevGo RF unit operating in Ku-Band, with an output range of 14.00 - 14.50 GHz and 100W of rated output power. Full electrical, mechanical and environmental specifications are listed below.
Key Specifications
| Band | Ku-Band |
| Output Frequency | Ku-Band: 14.00 - 14.50 GHz |
| Output Power | 100W |
RF Specifications
| RF Frequency | Standard: 14-14.50 MHz |
| IF Frequency | 950-1450 MHz |
| External Ref | 10 MHz, 0 ± 5 dBm |
| Output Power - Rated/Saturated | 50 dBm |
| Output Power - PLin1 | 49 dBm |
| Output Power - PLin2 | 48 dBm |
| Output Power - PLin3 | 47 dBm |
| IMD3 (3dB from rated) | - 25 dBc |
| Small Signal Gain | 75 dB |
| Gain Variation | 1 dB p-p / 36 MHz 3 dB p-p / 500 MHz 4 dB p-p / 750 MHz |
| Gain stability | 3 dB p-p |
| Gain Adjustment | 20 dB (Step: 0.5 dB) |
| Phase Noise | -65 dBc / Hz @ 100 Hz -75 dBc / Hz @ 1 KHz -85 dBc / Hz @ 10 KHz -95 dBc / Hz @ 100 KHz |
| Output Spurious | -60 dBc |
| Notes | PLin1: -26 dBc regrowth, 1.5 SR (commercial satellite) PLin2: -30 dBc regrowth, 1.0 SR (MIL-STD-188-164B, one-carrier) PLin3: <-25 dBc IMD3 (MIL-STD-188-164B, two-carrier) |
Power Supply
| Input Power | 85 to 265 VAC (47-63 Hz) |
| Power Consumption - @ PLin1 Output | 500W |
| Power Consumption - @ Rated Output | 550W |
Interfaces
| RF Output Connector | WR75-G (Grooved) |
| RF Output VSWR | 1.25:1 |
| IF Connector | N-Type Female |
| IF Input VSWR | 1.5:1 |
| Power Connector | ACS02E-14S-7P |
| M&C Connector | PT02E-12-14P (RS485/RS232/Eth) SNMPv2 |
| Redundancy Connector | PT02E-12-14S |
| Alarm Status Indicator | LED (green/red) |
Physical Parameters
| Size (inches) | 9.7*5.3*5.3 246*136*136 mm |
| Weight (lbs) | 12.5 5.7 kg |
| Operating Temperature | -40 to +60 °C (guarantee) |
| Humidity | 0-100% (condensing) |
| Altitude | 0-10,000 feet ASL |
